Back-to-back Double Deep Pallet Rack With Low Maintenance

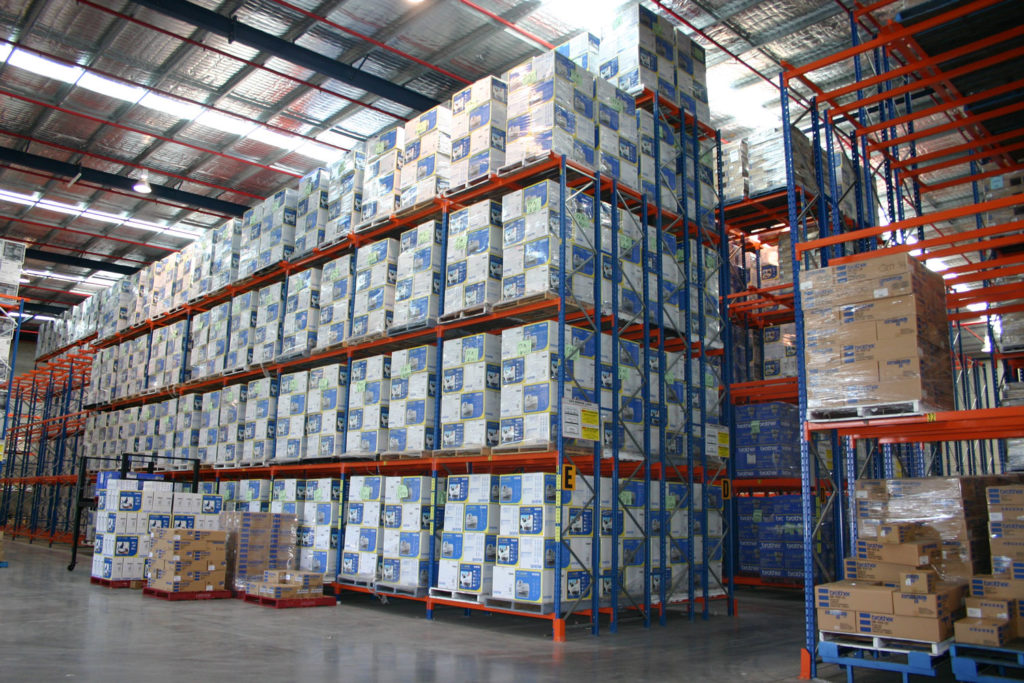

Double deep pallet rack is a type of industrial shelving system
used for the storage of palletized goods. It is designed to
maximize storage density by allowing two pallets to be stored
back-to-back within a single storage bay. This configuration
effectively doubles the storage capacity of each bay while reducing
the number of aisles required for access.
In a double deep pallet rack system, pallets are stored on rails
that run the depth of the rack. This allows the forklift to access
the pallets from the front of the rack, with the second pallet
being stored behind the first. When a pallet needs to be retrieved,
the forklift operator must first remove the front pallet before
accessing the rear pallet.
| Name | Double Deep Pallet racking | Material | High Strength Steel |
| Beam levels | 2~15 tiers per bay rack | Color | (RAL Code) Green, Orange, Blue, Yellow, Etc. |
| Upright Frame Height | 2500mm~15000mm | Weight Capacity | 500~3000kg per level |
| Beam Width | 1000mm~3900mm | Frame Depth | 700mm~1500mm |
| Finish | Epoxy Powder Coated for corrosion prevention |
| Usage | Cargos Storage |
| Package | Plastic stretch film, corrugated paper, Cartons, wooden bars,
crates, metal strips, etc. |
| Accessories | Bolts and nuts, Upright protectors, decks, etc. |
| Certification | RMI/AS4084-2012 /CE/ ISO9001 |
| Delivery time | 7~25 days as per order quantity |
| Assemble & installation | Detailed assembly instructions are available as well as dispatching
installation engineer for project installation at the site. |
The Difference Between Double Deep Racking and Selective Racking
The main difference between double deep pallet rack and selective
pallet rack lies in the way the pallets are stored and accessed.
Selective pallet rack is the most common type of pallet racking
system. It consists of vertical uprights, horizontal load beams,
and diagonal bracing. The pallets are stored on these load beams
and can be accessed directly from the aisle.
On the other hand, double deep pallet rack is designed to store two
pallets deep, one behind the other, on each side of the aisle. This
means that the pallets stored in the back of the rack can only be
accessed by a special forklift with an extended reach. Double deep
pallet rack can be a more space-efficient solution for storing
large quantities of the same product, but it requires more careful
inventory management and longer retrieval times.
In summary, selective pallet rack is designed for high selectivity
and easy access to individual pallets, while double deep pallet
rack is optimized for high storage density and requires special
equipment to access the back pallets.
Advantages
Double deep pallet racking is a storage system that allows for
pallets to be stored two deep, rather than one deep as in
traditional racking systems. Some of the advantages of double deep
pallet racking include:
Increased storage capacity: Double deep pallet racking can increase storage capacity by up to
50% compared to traditional racking systems, as it allows for more
pallets to be stored in the same amount of space.
Efficient use of floor space: By storing pallets two deep, double deep pallet racking reduces
the number of aisles required between racking systems, making more
efficient use of available floor space.
Cost-effective: Double deep pallet racking can be a cost-effective solution for
warehouses and other storage facilities looking to increase their
storage capacity without having to expand their floor space or move
to a larger facility.
Improved picking efficiency: Double deep pallet racking can improve picking efficiency by
reducing the number of aisles required between racking systems,
allowing for faster and more efficient picking and restocking of
inventory.
Compatible with various types of forklifts: Double deep pallet racking is compatible with a wide range of
forklifts, including reach trucks, counterbalance trucks, and
articulated trucks, making it a flexible and versatile storage
solution.
However, it's worth noting that double deep pallet racking also has
some disadvantages, such as reduced accessibility to some pallets
and the need for specialized forklifts to handle the deeper
storage.
Conclusion
Double deep pallet rack systems are ideal for warehouses and
distribution centers that have a large number of pallets to store
and limited floor space. However, they require specialized
forklifts with extended reach capabilities and may be less
accessible than single-deep racks.
