High Density Automatic Warehouse Storage Radio Shuttle Rack

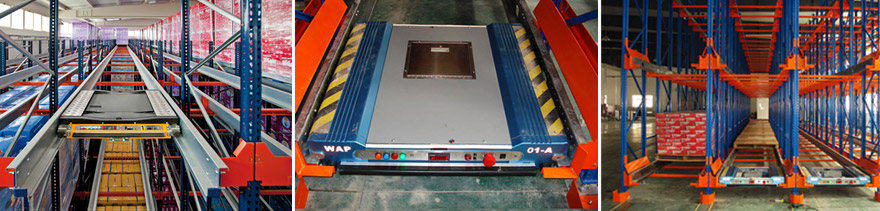

Radio shuttle pallet rack (radio frequency shuttle racking systems)
is an automated storage system, usually used in large-scale storage
and distribution centers. It consists of a shuttle car, some cargo
racks to support the car, and a remote control. The system
increases storage density, reduces storage costs, and increases the
speed of storage and retrieval of goods.
This racking system is suitable for warehouses with a large number
of goods of the same type, and the specifications of the goods are
relatively consistent. The shuttle car can automatically carry
goods according to the predetermined route, and the remote control
can control the car. When in use, the operator places the goods on
the loading rack at the entrance, and the shuttle trolley will
automatically move the goods to the designated location in the
storage area. When picking up the goods, the shuttle trolley will
carry the goods to the exit for the operator to take out.
The Radio shuttle pallet rack system can greatly improve storage
efficiency and operational efficiency, and at the same time reduce
the physical labor intensity of the operator, so it is widely used
in the modern warehousing industry.
Radio Shuttle Pallet Rack Components
Specifications of Radio Shuttle Rack
| Item | Basic Data | Remark |
| Type | High version: TDRII-A-1012-1.5T | |
| Appropriate Pallet | Width:1016mm Depth:1219mm | Entry: 1016mm |
| Max Load Capacity | Max 1500kg | |
| Move | Speed | Vmax empty:1.5m/s,Vmax full:1.0m/s | |
| Acceleration | ≤0.5m/S2 | |
| Motor | Brushless servo motor: 48VDC 600W | Imported from America |
| Servo Driver | Brushless servo driver | Imported |
| Lift | Lift Height | 40mm | |
| Motor | Brushless motor: 48VDC 500W | Imported from America |
| Positioning/Accuracy | Move Positioning: laser sensor | Germany P+F/SICK |
| Pallet Positioning: laser sensor | Germany P+F/SICK |
| Lift Positioning: proximity switch | Germany P+F |
| Object Detection | Background suppression photoelectricity | Germany P+F/SICK |
| Control System | Programmable controller: S7-200 PLC | Germany SIEMENS |
| Remoter | Work frequency: 433MHZ; Communication distance: at least 100m if in an open environment. | Imported customized IMT |
| Two-way communication, with LED display |
| Temperature:-40℃~+80℃ IP67 |
| Power Supply | Lithium iron phosphate power battery | Domestic, high quality |
| Battery Parameter | 48V,30AH; running time:≥8h; charging time: 3h; charge times:1000 | Maintenance-free |
| Speed Control Mode | Servo control, constant torque at low speed | |
| Shuttle Control Mode | Remote control | |
| Running Noise | ≤60db | |
| Painting Requirements | Frame (black) Others (light gray) | |
| Ambient temperature | Temperature: 0℃～50℃ Humidity: 5% ~ 95% (no condensation) | |
| Anti-collision Device | Polyurethane cushioning strip and anti-collision sensor are
installed on the end surface | |
Radio shuttle pallet rack (radio frequency shuttle racking system)
has the following advantages:
1. Improve storage density: Compared with traditional racking
systems, Radio shuttle pallet rack can increase storage density,
because it can store more goods in the same warehouse space.
2. Improve operation efficiency: The shuttle car can automatically
carry goods according to the predetermined route, thereby reducing
the time and labor of manual operation and improving operation
efficiency.
3. Wide applicability: The radio shuttle pallet rack is suitable
for large-scale storage and distribution centers, especially for
warehouses with a large number of goods of the same type and
relatively consistent specifications.
4. Strong flexibility: The cargo rack of the Radio shuttle pallet
rack can be flexibly combined according to actual needs to
accommodate goods of different specifications and volumes.
However, the Radio shuttle pallet rack also has some disadvantages:
1. High investment cost: Compared with traditional shelves, the
investment cost of the Radio shuttle pallet rack is higher.
2. High maintenance cost: Since the Radio shuttle pallet rack is an
automated storage system, it needs regular maintenance and
maintenance, and the maintenance cost is high.
3. Professional operators have required: Radio shuttle pallet racks
require professional operators to manage and maintain, and require
high-quality personnel.
4. Not suitable for a wide variety of goods: The radio shuttle
pallet rack is suitable for a large number of goods of the same
type, not suitable for warehouses with a wide variety of goods.
The following factors need to be considered when purchasing a Radio
shuttle pallet rack (radio frequency shuttle racking system):
1. Warehouse space: When purchasing a Radio shuttle pallet rack,
factors such as the space size, height, and ground load-bearing
capacity of the warehouse need to be considered. The specifications
and models suitable for the warehouse space should be selected.
2. Types and specifications of goods: Radio shuttle pallet rack is
suitable for a large number of goods of the same type, and a
suitable loading rack and shuttle trolley should be selected
according to the type, specification and size of the goods.
3. Ways of cargo entry and exit: There are usually two ways of
entry and exit of the Radio shuttle pallet rack: one-way entry and
exit and two-way entry and exit. The appropriate entry and exit
method should be selected according to actual needs.
4. The number and height of the racks: The number and height of the
racks of the Radio shuttle pallet rack should be selected according
to the storage requirements of the warehouse and the specifications
of the goods.
5. System scalability: The scalability of the system should be
considered so that the system can be easily upgraded and expanded
when the storage capacity needs to be expanded in the future.
6. Supplier reputation and after-sales service: When purchasing
Radio shuttle pallet rack, you should choose a reputable supplier,
and consider the quality and ability of the supplier's after-sales
service.
7. Budget: When purchasing a Radio shuttle pallet rack, factors
such as budget and return on investment need to be considered, and
the appropriate model and specification should be selected
according to the actual budget and needs.
Warehouse Solution Designing
Ironstone has its own design consultants who are experienced in
offering you optimal storage solutions for optimizing your material
and information flow. Based on engineering design, computer
modeling, and CAD software design, we have successfully provided
thousands of storage solutions for our customers. Through a win-win
combination, we can assure you of your success in managing your
goods by means of our professional technology and risk management.
We can satisfy your various design requirements!
