100% Selectivity Warehouse Pallet Racking Systems
Selective warehouse pallet racking systems, commonly seen in almost
all warehouses, is an essential storage system in modern industry.
To get to know this system, I'll introduce you to two
configurations of selective pallet racks. Selective metal pallet racking can be manufactured with one raw
material: roll-formed steel. It is made from iron ore, it possesses
the characteristics like strength, durability, ductility,
non-combustibility, and flexibility.
♦ Roll-formed steel
Roll-formed steel, also called cold-formed steel, in which these
two words " roll " and "cold" have covered the basic processing
steps. At room temperature, flat carbon steel is shaped into long, coiled metal strips with the required thickness. In this process, protective coating is often
applied for corrosion protection.
Features
► Holes are punched on the columns with beams bolted in.
► Providing higher load capacity with heavier channel steel.
► Safer storage solution abusive to forklift damages.
► Less maintenance.

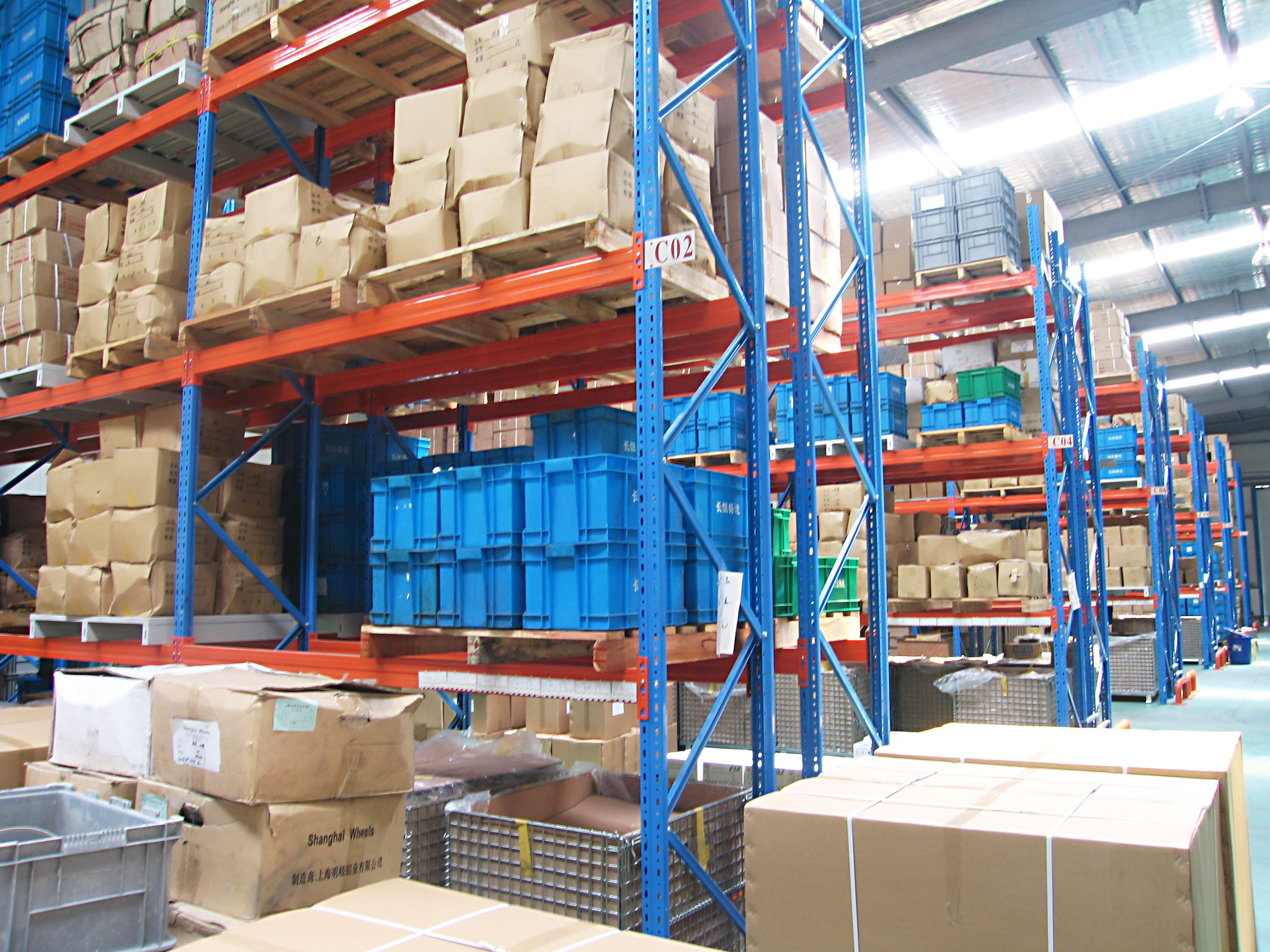

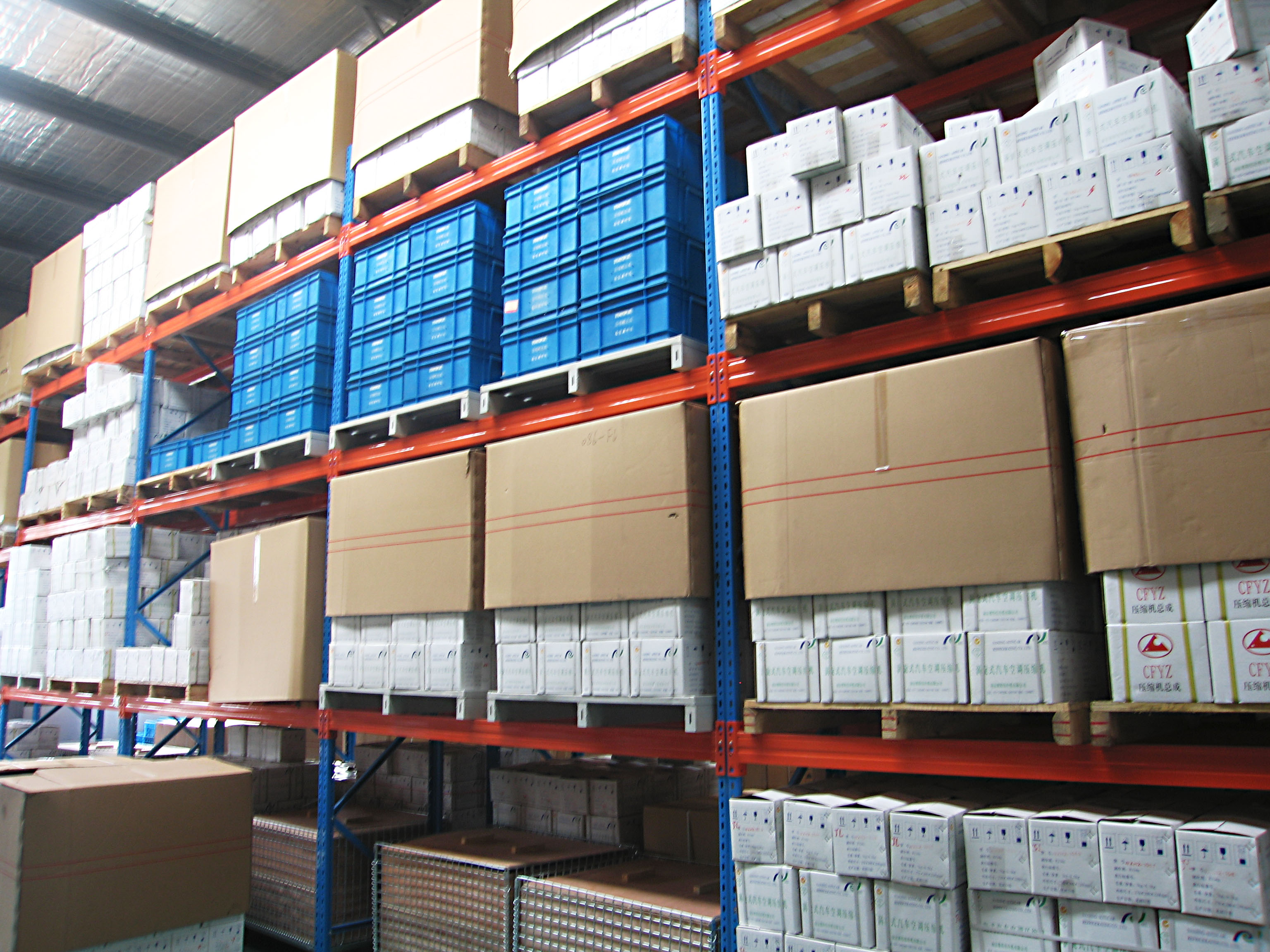

Roll Formed Pallet Rack
Features
► Cost-effective storage solution with lighter gauge steel.
► Easy to install and dismantle with boltless beam pin connectors.
► Beams can be adjusted along the columns to adjust to different
load sizes.
Applications
Roll-formed warehouse pallet racking systems, though not as strong as structural racks, can also satisfy most
warehouse storage demands. Actually, more business owners have
chosen this style for cost-saving and flexibility. Roll-formed
pallet racking is also good for seasonal goods storage with
multiple items and sizes.
What's more, most roll-formed pallet racks are interchangeable
among different manufacturers in certain regions and countries. For
example, teardrop pallet racks are the most popular type in North America
where most teardrop components are compatible and replaceable.
More details about roll-formed pallet rack
| Name | Pallet rack | Material | US standard steel |
| Shelf levels | 2~15 tiers per shelving unit | Color | Green, Orange, Blue, Yellow, Custom |
| Upright Frame Height | 2500mm~15000mm | Weight Capacity | 500~3000kg per level |
| Beam Width | 1000mm~3900mm | Frame Depth | 700mm~1500mm |
| Finish | Epoxy powder coated for corrosion prevention |
| Usage | Cargoes Storage, Palletized loads production |
| Package | Plastic stretch film, corrugated paper, cartons, wooden bars,
crates, metal strips, etc. |
| Accessories | Bolts and nuts, Upright protectors, decks, etc. |
| Certification | RMI/AS4084-2012 /CE/ ISO9001 |
| Delivery time | 7~25 days as per order quantity |
| Assemble & installation | Detailed assembly instructions are available |
