Widely Applicable Selective Pallet Racking System for Various Storage Demands

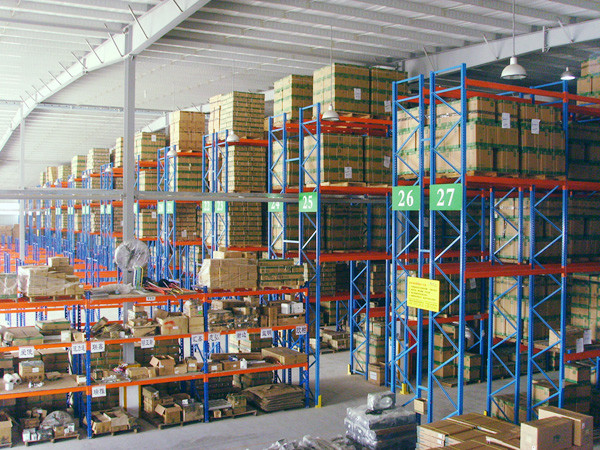

Selective pallet racks are the most popular type of warehouse
pallet rack system on the market and are designed to offload pallets into a racking system. Selective pallet racking systems
enable swift operations while storing and unloading pallets. The
system offers the largest possible range of selection in sizes and
accessories to meet your exact needs and it can be
custom-configured for your warehouse storage application.
| Name | Pallet rack | Material | US standard steel |
| Shelf levels | 2~15 tiers per shelving unit | Color | Green, Orange, Blue, Yellow, Custom |
| Upright Frame Height | 2500mm~15000mm | Weight Capacity | 500~3000kg per level |
| Beam Width | 1000mm~3900mm | Frame Depth | 700mm~1500mm |
| Finish | Epoxy powder coated for corrosion prevention |
| Usage | Cargoes Storage, Palletized loads production |
| Package | Plastic stretch film, corrugated paper, cartons, wooden bars,
crates, metal strips, etc. |
| Accessories | Bolts and nuts, Upright protectors, decks, etc. |
| Certification | RMI/AS4084-2012 /CE/ ISO9001 |
| Delivery time | 7~25 days as per order quantity |
| Assemble & installation | Detailed assembly instructions are available |
Advantages of Selective Rack Systems
►Available in numerous capacities, sizes, and configurations for a
specific demand.
►Immediate access to all storage.
►Can be made from roll-formed steel, structural steel, or a
combination of both materials.
►Easily adjustable shelf heights.
►Inexpensive — lowest cost option per square foot.
With the rapid development of the economy and increasing demands of
customers, requirements for warehousing are upgrading. To satisfy
different storage needs, there are various pallet rack systems
available for selection in the market.
However, none of them is perfect. If you set up a suitable pallet
rack system in your facility, it will be conducive to the
administration of inventory flow, improve space efficiency and
enhance storage capacity, whereas an unsuitable one will cause you
trouble. Here are some tips to help you build a proper pallet rack
system:
How to choose the right type of pallet rack system?
Every pallet rack system has its own advantages and disadvantages.
It is advisable to employ appropriate rack system in terms of
specific storage needs. You can make decisions from the following
aspects:
♦Product Rotation
Which load method do you prefer, FIFO (first in, first out) or FILO
(first in, last out)? If the stored products are time-sensitive,
FIFO is critical for the rack system. If the potency of products is
durable and far from the expiration date, FILO is acceptable.
Common FIFO pallet rack systems: selective pallet rack, very narrow aisle pallet rack, pallet flow
rack;
Common FILO pallet rack systems: double deep pallet rack, drive-in pallet rack, push back pallet
rack.
♦Selectivity VS. Density
Selectivity is related to the variety of stored units, while
density is connected with product quantity. If you are going to
store a lot of different products, attach importance to selectivity
when choosing a pallet rack; if you plan to store a large number of
the same SKUs, put density before selectivity.
100% selectivity pallet rack systems: selective pallet rack, very narrow aisle pallet rack, ASRS;
High-density pallet rack systems: drive-in pallet rack, push-back pallet rack, pallet flow rack,
radio shuttle rack.
♦Budget
Budget is another factor concerning pallet rack selection. Making
full use of available space within your budget is the ideal result.
The costs of different pallet rack systems vary. If you are not
clear, you can consult us for advice. We are confident to offer you
the most cost-effective plan.
How to make sure the size of pallet racks?
After selecting a suitable type of pallet rack, it is time to
identify the size. You can proceed in the following steps:
Make sure which area in your facility is used for storage. Take
measurements of the available space. Based on the measured data,
draw a layout indicating dimensions, ceiling height and positions
of doors, walls, pillars and other obstacles.
- Determine the size and weight of pallets
Which pallet size would you plan to choose? How much would a pallet
carry? Identify the width, depth and height (load height plus
pallet height) of chosen pallets. Measure the accurate weight of
each pallet.

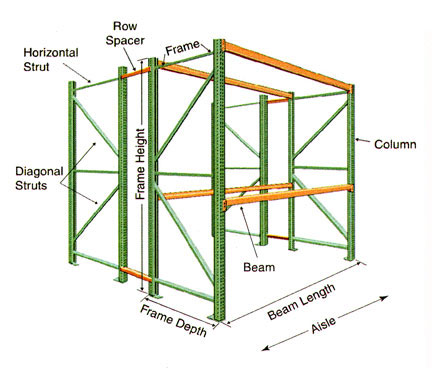

Beam width: When placing pallets on beams, there should be at least 10cm
clearance between upright columns and pallets, and between pallets.
For example, if the pallet width is 100cm and two pallets are loaded per bay, then the beam width should be: 10cm + 100cm + 10cm + 100cm + 10cm
= 230cm.
Beam capacity: Beam capacity hinges on pallet weight and the number of pallet loaded. For example, if pallet weight = 1000kg with two pallets per
level, then beam capacity should be no less than 2000kg (1000*2).
Frame depth refers to the distance between loaded beams. Usually, a
properly stored pallet should overhang the beams by approximately
8cm both in the front and in the back, allowing the beams to carry
the full weight of the pallet. Thus, if pallet depth = 120cm, frame
depth = pallet depth - 2*8cm = 104cm.
There should be at least 45cm distance between ceiling (or your
sprinklers) and your products. Besides, the height that your
material handling equipment can reach should be taken into account.
Within your forklifts’ accessibility, we suggest that your rack
system should reach as high as it reasonably can to optimize the
utilization of vertical space, even if it exceeds your present
needs.
Since pallet racks are durable products, it is favorable to
consider further development in the future when designing pallet
racks. In addition, the difference in the costs between a 4m frame
and a 5m frame is negligible compared with the total cost of your
project.
