CE Certified Heavy Duty Selective Pallet Racking With Large Loading
Capacity

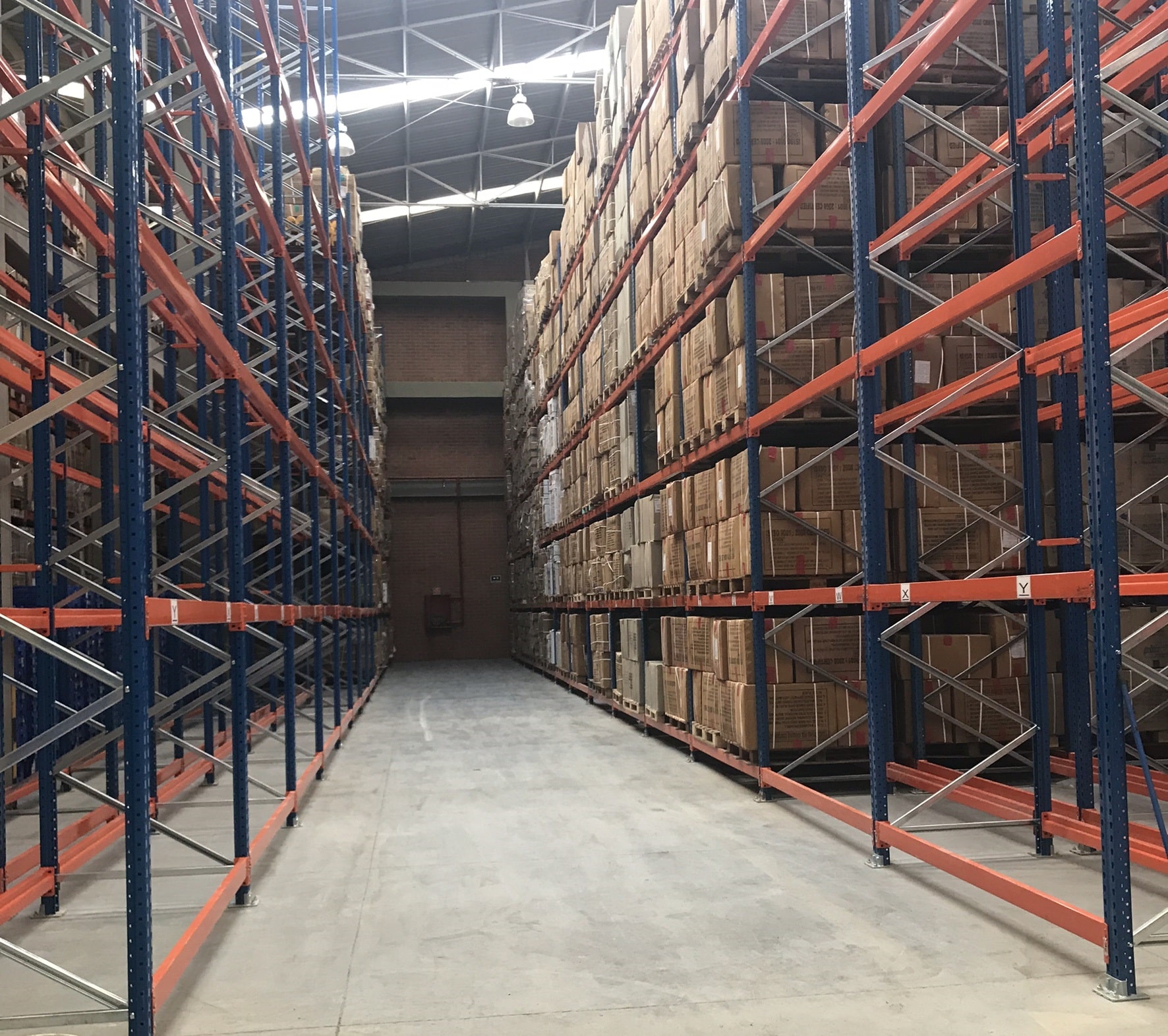

Selective pallet racking, the conventional warehouse storage and
retrieval system, should always be operated at maximum loading
capacity for safety and durability. If you ever feel confused about
the calculation of the racks' load capacity and products' weight
limits each bay can hold, this article may help to clear your mind.
When talking about rack capacity, let's start with its main
weight-bearing components: upright frames and beams, which work
together contributing to the whole structure's integrity and
stability.
Here's a beam and upright loading capacity chart for your reference
| Beam Loading Capacity (Kg/pair) |
Section Size(mm) | Beam Deflection=L/300 Beam Length(mm) |
| 1800 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 |
| 80*50*1.5 | 2400 | 1950 | 1250 | 1050 | 900 | 800 | 600 | 400 |
| 100*50*1.5 | 4000 | 3300 | 2100 | 1800 | 1500 | 1250 | 1000 | 850 |
| 110*50*1.5 | | 4000 | 2700 | 2300 | 1900 | 1600 | 1300 | 1100 |
| 120*50*1.5 | | | 3200 | 2700 | 2300 | 1900 | 1500 | 1300 |
| 140*50*1.5 | | | | 3850 | 3300 | 2700 | 2300 | 1900 |
| 160*50*1.5 | | | | | 4600 | 3700 | 3100 | 2600 |
| Upright Frame Loading Capacity (kg) |
| Upright Section Size(mm) | Thickness(mm) | Depth of frames(mm) | Loading Capacity(kg) |
| 80*60 | 1.8 | 800/900/1000/1050 | 6000 |
| 2.0 | 900/1000/1050/1100 | 8000 |
| 90*70 | 1.8 | 800/900/1000/1050 | 8000 |
| 2.0 | 900/1000/1050/1100 | 11000 |
| 100*70 | 2.0 | 900/1000/1050/1100 | 13000 |
| 2.3 | 900/1000/1050/1100 | 15000 |
| 2.5 | 900/1000/1050/1100 | 16500 |
| 120*95 | 2.0 | 900/1000/1050/1100 | 18000 |
| 2.3 | 900/1000/1050/1100 | 20000 |
| 2.5 | 900/1000/1050/1100 | 22000 |
| 3.0 | 900/1000/1050/1100 | 26000 |
Beam Capacity
Beam capacity often refers to a pair of beams' capacity since they
work together in each bay. Under vertical pressure and horizontal
tension, beams undertake the pallet weight and then transfer that
to the uprights. The beam distance between two layers is adjusted
to pallet load sizes.
Usually, at each beam level, two pallet positions are designed. In
that case, the total weight of two pallet loads must be less than
the beam capacity at each level.
Allowable Beam Deflection Formula
Upright Capacity
Taking one bay unit as an example, two upright frames placed left
and right with connecting beams form a basic storage unit. After
the cargo is loaded on the beams, uprights will immediately bear
the compression force transferred to by-products and other related
parts.
The capacity each upright will hold will be determined by the load
weight and the beam length. In this situation, the term
"Deflection" is used to measure the vertical beam deviation
distance when loaded.
When choosing the proper rack material that satisfies your storage
requirement, there are some points that are worth your attention.
► In actual application, the first-level loads are usually placed
on the ground for cost-saving.
► All the load capacity terms we mentioned before refer to static
loads.
► Both beams and uprights' maximum load capacity should be met.
► All the racks should be installed on the floor fulfilling certain
project requests.
► Racks including frames, beams, and other accessories should be
correctly assembled.
► Capacity redundancy should be left for long-term safety
operations and potential damage.
Questions You May Care About:
Q1:Does all racks produced by your company?
A1: Yes, we're a direct manufacturer with over 20 years of
experience, main products of us include Pallet Racking, Shelving,
Radio Shuttle, Cantilever, Mezzanine, etc. All products are 100%
produced by ourselves.
Q2: Where is your company located?
A2: Our factory is located in Jiangning District, Nanjing, Jiangsu,
China, close to Nanjing Port, convenient for delivery. 90,000 sqm
production plant, which enables a strong production capacity and
stable quality.
Q3: What certification do your products pass?
A3: We're ISO9001 certificated company. Rack systems are strictly
designed and produced based on CE and AS4084:2012 standards for
storage racks, and comply with FEM and RMI standards.
Q4 How long of your warranty period?
A4: We afford a 10-year warranty and lifetime insurance services
for all racking products. For any quality issues that are caused by
the quality of products, we'll provide free parts for replacement.
Q5:Do you provide the samples?
A5:We can provide the product samples for you to test. Samples can
be transported by sea, land, and air.
Q6: When is the delivery time?
A6: It usually takes 25 to 30 days. But the exact delivery time is
different for different order quantities.
