EURO 50mm Pitch Warehouse Pallet Rack Systems

About Euro (50mm pitch adjustable) Pallet Racking

Euro warehouse pallet rack systems offers greater flexibility in the adjustment of beam levels by using 3-5 hooks beam connector. Apart from providing greater adjustability in beam location, the new beam connectors have an enhanced loading bearing. Euro is designed in accordance with the latest FEM (Europe Federation of Material Handling and storage equipment) standards. It also meets AS4084(Australian Code for steel storage racking).

Euro Pallet Racking Upright

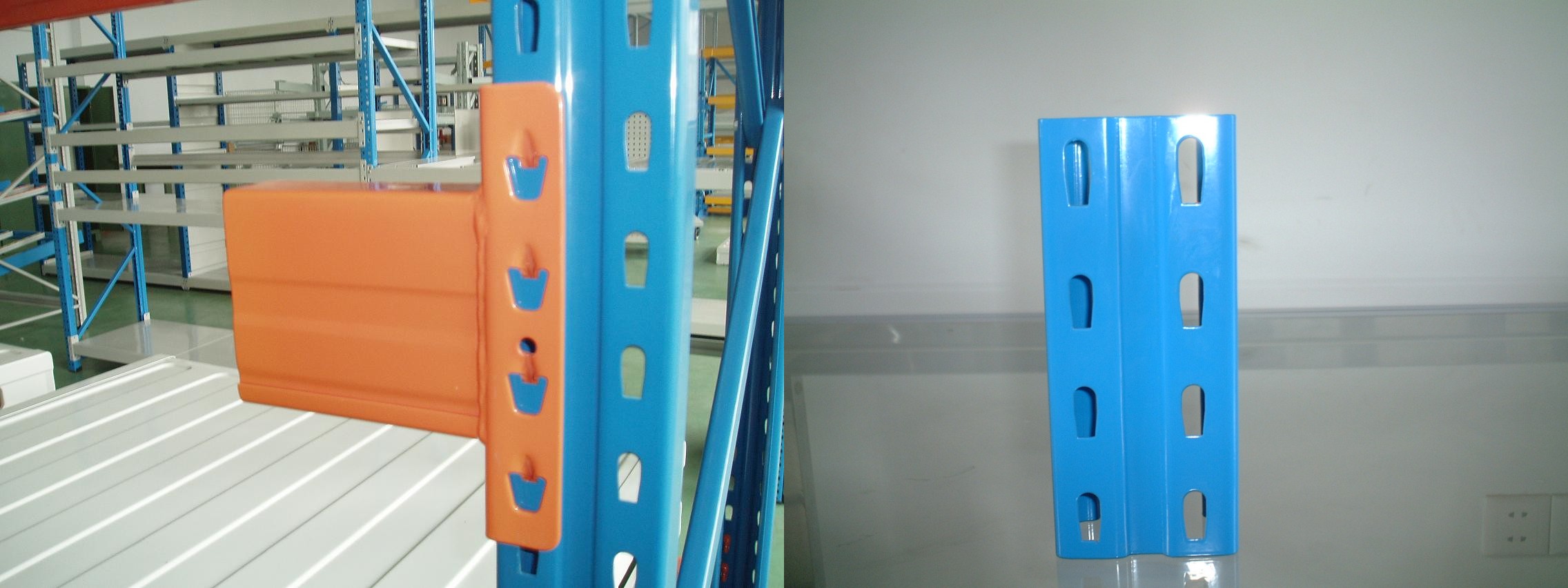

Euro pallet racking upright has an optimum profile with a 50mm hole pitch for better capacity and space utilization. The uprights are made from high-quality steel and are very rigid. These are then bolted from the stable frame using horizontal and diagonal bracing. Different kinds of base plates ensure loads even distributed on the floor.

Euro beam connectors are designed to increase resistance to sideways movement and effectively take vertical loads and this, movement on specially designed high-performance hooks. Beam connectors available for use are 3-5 hooks, depending on the beam section height and beam loading.

Closed Box Beam

BOX beams are available in a comprehensive range to cover most loading requirement .beam section heights available from 80-160mm, thickness are available 1.5,1.8,2.mm.

Powder Coating Steel Warehouse Pallet Rack Systems Details

Safety Pin & Safety Lock

Each beam end is supplied with steel safety lock or safety pins which guarantee the beam is correctly positioned and help prevent the beam from being accidentally dislodged during its work.

Base Plates

According to different the height of the racking systems established, some special base plates as suggested, all of them are galvanized and have good anti-corrosion functions.

Upright Protector

The Upright protector will reduce the damage caused by impact loads. Especially for installations with fast-moving products or heavy products upright protectors are essential for the safety and durability of the racking. A number of the basic protectors are available as follow:

Application

Our product testing and production equipment

Founded in 2004, Ironstone-Meca Industry is a professional storage equipment manufacturer providing full ranges of services including design, consultation, production, technical guidance,  installation and maintenance support.

The mission of Ironstone-Meca Industry is to be an innovation driven, customer oriented company with excellent products, perfect storage solutions, all round customer services and full commitment of on-going improvement in the Logistics industry today and the future.

Completed countless successful projects received numerous praises, Ironstone has always treated rack safety and quality as the foremost factor. Having our products certified in US and Australia market with RMI standard testing and AS4084-2012 standard, Ironstone has developed some big agents in the glabal market and will develop more under the support of our loyal customers.

Helping our customers to find the perfect warehouse managment solutions, Ironstone can maximize your profits with lowest cost. You will get warm welcome from us if you visit our factory in China!
