Customized RMI (R-Mark) Certified Warehouse Heavy Duty Cantilever
Racking for Bulky Product Storage
What is heavy-duty cantilever rack?
Heavy-duty cantilever racks, also called pipe racks, timber racks,
lumber racks, furniture racks, etc, often named after the products
they stored, can hold medium to heavy loads that can't fit in
standard pallet racking systems.
Heavy-duty cantilever racks are usually constructed with structural
steel possessing the features of strength, rigidity, and
durability. Single-sided or double-sided vertical columns and
bases, adjustable horizontal arms, along with bracings all form a
basic weight-supporting unit of the cantilever system.
Arm and column specifications
| Cantilever Arm Load Capacity (Kg) |
| Arm Length(mm) |
| Height | 800 | 1000 | 1200 | 1400 | 1600 |
| H120 | 1500 | 1380 | 1020 | 750 | 570 |
| H150 | 1500 | 1500 | 1250 | 1190 | 910 |
| H180 | 1500 | 1500 | 1250 | 1250 | 1250 |
| Cantilever Rack Column Capacity(Kg) |
| Specification(mm) | Height (mm) | Capacity(kg) |
| Single-sided | Double-sided |
|
| 305*96 | 2500 | 6800 | 13600 |
| 3000 | 6400 | 12800 |
| 3500 | 5900 | 11800 |
| 4000 | 5600 | 11200 |
| 4500 | 5400 | 10800 |
| 5000 | 5100 | 10200 |
| 5500 | 4500 | 9000 |
| 6000 | 4200 | 8400 |
| Cantilever Rack Column Capacity(Kg) |
| Specification(mm) | Height(mm) | Capacity(kgs) |
| Single-sided | Double-sided |
|
| 350*96 | 5000 | 8500 | 17000 |
| 5500 | 8100 | 16200 |
| 6000 | 7700 | 15400 |
| 6500 | 7200 | 14400 |
| 7000 | 6700 | 13400 |
| 7500 | 6300 | 12600 |
| 8000 | 5800 | 11600 |
| 8500 | 5400 | 10800 |
| Cantilever Rack Column Capacity(Kg) |
| Specification(mm) | Height(mm) | Capacity(kg) |
| Single-sided | Double-sided |
|
| 410*96 | 5500 | 12500 | 25000 |
| 6000 | 12000 | 24000 |
| 6500 | 11000 | 22000 |
| 7000 | 10000 | 20000 |
| 7500 | 9500 | 19000 |
| 8000 | 9200 | 18400 |
| 8500 | 8700 | 17400 |
| 9000 | 7500 | 15000 |
A facility's storage solution has a direct impact on operational
efficiency and security. Investing in heavy-duty double-sided
cantilever racks eliminates the need to handle loose, long, and
bulky items. Arms on the sides are used to store large amounts of
material. This industrial storage unit, available as entry and
add-on units, can be configured as a single rack or as a continuous
system with multiple racks. There are three heights (96", 120", and
144"), two arm types (standard and angled, with or without lip),
nine arm lengths, and nine stand lengths to choose from.
How to use heavy-duty cantilever rack?

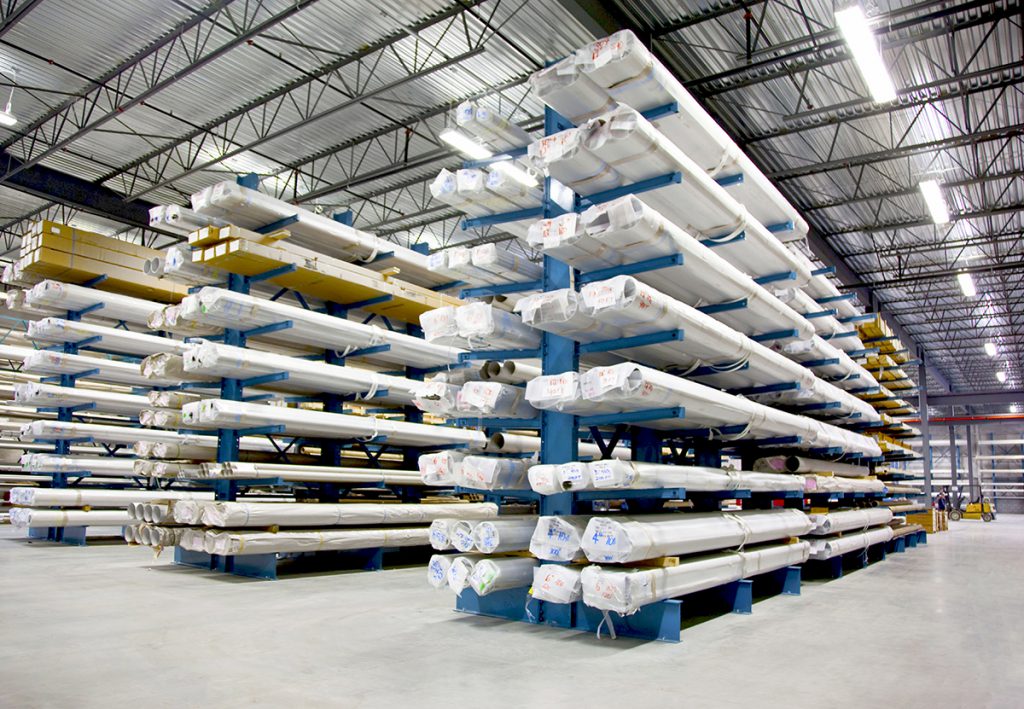

For that long-extrusion, heavy, and irregularly shaped bulky
products, cantilever racking is a good solution to large amount
inventory management.
Loaded and unloaded with forklifts, items can be placed on the
cantilever arms taking up the whole length without front bay
confrontation. With an open structure, the cantilever racking
system makes full use of the constrained space, reduces the initial
investment, improves productivity, and increases the material
handling efficiency and safety eventually.
For different businesses and products, warehouse owners and
managers can customize their own cantilever system with proper
dimensions, load capacity, and quantity by discussing with your
rack manufacturer.
What's the feature of heavy-duty cantilever rack?
► Direct access to all the stored products.
► Ranged in sizes, gauges, and accessories of numerous options to
meet all kinds of requirements.
► Rotated designed arm evades possible damages and accidents.
► Corrosion protective measures guarantee a long time of usage.
► Customized bases and braces ensures structure stability.
