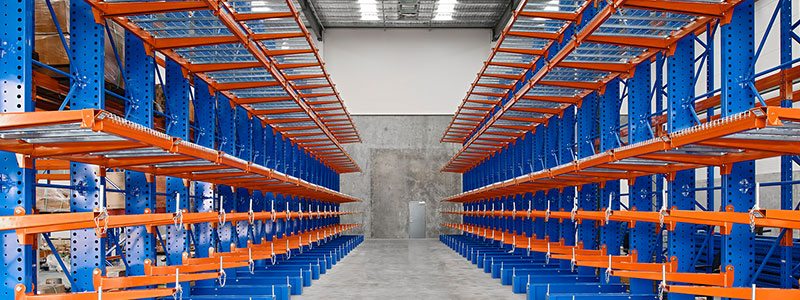

Industrial Cost-Saving High Density Heavy Duty Cantilever Racking
Open Storage System
Key Descriptions
1. High-density cantilever rack is a kind of storage system for
very long products that can't be stored in standard pallet racking.
2. Single-sided cantilever racks can be located against the wall,
while double-sided cantilever rack usually standing independently.
3. Produced with different guage steels, cantilever rack can bear
light, medium, and heavy weight loads.
Product Name | High density cantilever rack |
Feature | Open storage system with direct access |
Raw material | H type structural steel, roll formed steel |
Pitch distance |
|
Handling charater | Full selectivity and high accessibility |
Suitable environment | In-door and out-door |
MOQ | 1 * 20 ft container |
Trade Term | EXW/FOB/CNF/CIF |
Key Components
1. Upright posts can be roll-formed or structural connecting to the
bases, the latter can carry heavier loads than the fomer. The
height of light to medium duty cantilever columns is less than 2
meters.
2. Bases include single sided and double sided which should be
longer than the arms for the stability of the whole structure.
3. Cantilever rack arms, playing the role of standard storage
beams, are the main parts for product storage. Easily adjusted up
and down the columns, arms are customized for required capacity and
load sizes. For industrial storage safety, inclined arms or arms
with stop pins are getting more popular by effectively stopping
possible items from falling down.
4. To create uninterrupted storage space for long items, bracings
are necessary by connecting upright posts together. Horizontal and
diagonal bracings in different sizes are arranged with X shape and
H shape to comply with different rack heights and load capacities.
The following picture has shown a commonly used cantilever rack
specification for your reference.
Key Merits
1. Cantilever racking systems have high cubic space utilization for
long, round and bulky products storage such as pipes, metal sheets,
tubes, large size furnitures, fabric rugs and automotive parts.
2. Without front obstrusion, cantilever system offers instant
access and great visibility which resulting to high efficiency and
productivity for operators.
3. Cantilever racks are cost-effective with compact storage
density, good durability and low maintenance cost.
4. Simple structures of cantilever rack are friendly for owners to
assemble, dismantle and relocate. For example, sigle sided
cantilever rack can be modified into double sided.
Key Safety Points
1. Precise calculation and professional design must be made to
specific storage demand before applying your cantilever system for
safety concern.
2. The horizontal arm distance of two adjacent ones is decided by
weight capacity of each arm and also the product length. Cargoes
overhang is extremely dangerous that you should avoid by leaving
some buffer zone.
3. Overload of cantilever rack can lead to serious rack collapse,
product damage and worker injury. During operation, arm deflection
and uniform load are two points that worth your attention.
4. Safety accessories such as rack support bar, guild rails and
wire decks should be properly chosen for additional safety support.
