Customized Automatic Storage And Retrieval System ( ASRS )
Manufactured In China
Introductions

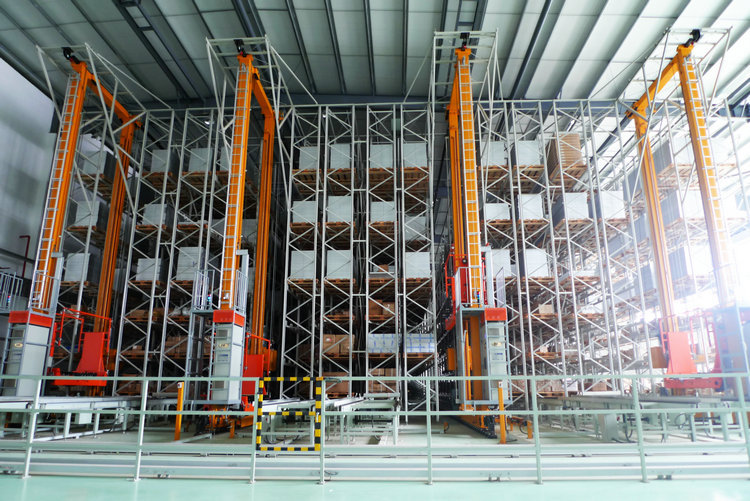

Automatic Storage and Retrieval System, (ASRS for short), is an
advanced storage solution by integrating modern computer
technologies, traditional pallet racks, as well as various material
handling methods together to conform to the increasing demands of
fast logistic market development.
As a competitive storage solution, ASRS realizes automatic product
placing, storing, and picking facilitated by computers and
machines, such as stack cranes, vertical lift machines, and system
control computers. Adapting to different load sizes and weights,
ASRS rationalizes vertical and horizontal space utilization,
accurate and efficient operation, labor-saving, and automated
management.
Some details of ASRS
| Product name | Automatic Storage and Retrieval System (ASRS) |
| Brand | Ironstone | Port | Nanjing/Shanghai |
| Color | RAL system | Material | steel |
| Usage | Warehouse Storage | Certification | RMI/CE/ISO/TUV/AS4084-2012 |
| Size | Customized | Structure | Assembled Freely |
| Height | 1350mm - 20000mm | Capacity | Max. 21000kg/bay |
| Width | 300mm - 2000mm | Thickness | 1.5mm - 3.0mm |
| Style | Automated Warehouse | Package | Customized |
Structure and components
An Automatic Storage and Retrieval System commonly consists of the
following parts:
♦ Storage structure
As the basis of ASRS, the warehouse is usually specially designed
for usage. Considering the maximum loads of the whole system,
infrastructures inside the building should be properly engineered
for long durability and safety such as foundations and columns.
The racks inside the building should be chosen conforming to ASRA
application requirements. Very narrow aisle pallet rack and
drive-in pallet rack, as well as some other accessories, are
regularly used in this system.
♦ Automatic material handling equipment
In an ASRS, more automated machines are involved in product storage
and retrieval. For example, for bulky or palletized products,
largely automated stacker cranes are commonly used fixing on
certain aisles. For small items stored in boxes and cartons,
shuttle cars or mini-sized stacker cranes are optional for fast and
accurate inventory placing and picking, especially in deep storage
lanes.
♦ Conveying system
Acting as connecting parts between ASRS and perimeter working
stations, some conveyance equipment may necessary for facilitating
the whole handling processes at the front or back of the system. A
conveying system may include rolling conveyors and chain conveyors
combined with vertical lifts, rotating devices, and other
complementary components and accessories.
♦ Warehouse Controlling system
Warehouse Controlling System (WCS for short ), a software
application, typically includes a programmable logic controller and
a decentralized control configuration. Programmed to manage the
warehouse as requested with optimized productivity, WCS controls
the stacker cranes and radio shuttles movement serving preset
purposes such as material handling processes and inventory control
details.
Main features
► Maximized warehouse space utilization both vertical and
horizontal;
► Minimized labor constraints involving more machines;
► Increased products storage compatibility and capacity;
► Reduced energy consumption, especially in freezers and cooler
rooms;
► Improved material handling accuracy, safety, and efficiency;
► Accelerated product turnout and throughput productivity;
► Reduced forklift accident and operation errors;
► Automatic inventory management with security and reliability;
► Decreased management cost and product damage;
► Optimized user experience and customer services;
► Customized system to accommodate any of your complex storage
requirements and facilities;
AS/RS for warehouse storage is almost perfect with its advanced,
automated, integrative material handling productivity and
capability. Though the relatively large initial investment,
compared to the expensive land cost, ASRS can certainly pay you
back holding absolute predominance in maximizing your profits and
assisting your future business development.
