Warehouse Selective Teardrop Pallet Racks With Teardrop Step Beams
For Multiple SKUs Storage
Warehouse-selective teardrop pallet racks are widely used in the
North American market for various products holding with a lot of
advantages such as full selectivity and instant accessibility.
Suitable for multiple SKUs products, teardrop pallet racks are
composed of teardrop shape uprights and step beams.

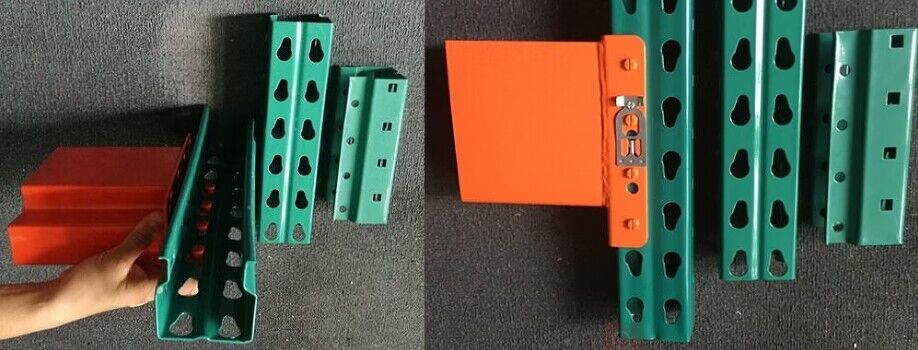

New-style teardrop racks step beams can be slid into the punched
teardrop hole and locked to the teardrop uprights conveniently and
securely. Since most teardrop pallet rack components from different
manufacturers can be compatible and interchangeable, before mixing
up your storage systems, there are some important points that are
worth your attention if you want to apply step beams into your
racking system.
Teardrop pallet rack details
| Name | Teardrop (US) Pallet Rack | Material | American standard steel |
| Depth | 24"-60" | Weight Capacity | 1000-7000lbs/beam level |
| Width | 48"-156" | Height | 96”-432” or Customized |
| Frame Structure Type | Welded & Bolted 3"*3" Upright frame with Seismic Baseplate |
| Beam Type | 2.5"-6.25" Step Beam |
| Beam Connector Type | SP & SL Safety Locker |
| Surface finish | Powder coating &Galvanized |
| Application Environment | Normal Temperature or Cold Room (Max -40C) |
| Certification | RMI Certification, ISO9001, CE |
| Free Sample | Available |
| OEM | Available |
1) Teardrop step beams are customized components that you need to
consult your rack manufacturer for production and stock
information.
2) Various beam face sizes, beam lengths, and corresponding load
capacities are available for your personal demand.

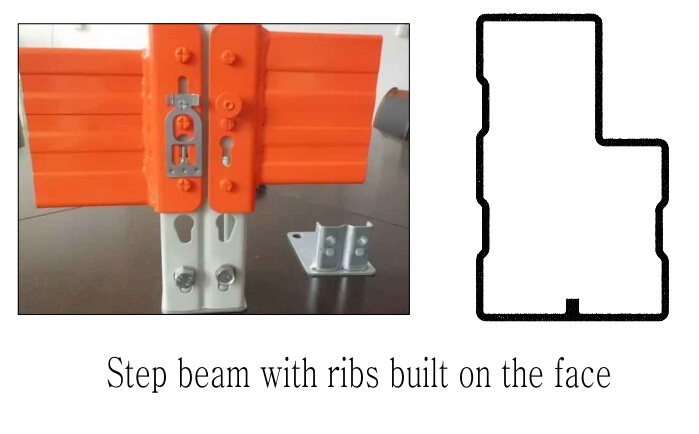

3) Beam faces step beam, as the name shows, there is a step-shaped
configuration in it. The beam face height and width have been
marked in the picture below.
4) Pin connectors: accommodating to various beam face sizes, 3 to 4
stud pin connectors will be welded to the end of the step beams for
safe upright-and-beam connection.
5) Beam length refers to the neat distance excluding the pin
connector parts during measurement. When deciding the proper beam
length for your storage racks, pallet sizes will be the first
factor to be taken into consideration. For standard pallets with
the size of 40" x 48, 96" length beams and 144" length beams are
optional with reasonable handling clearance.
6) For step beams of selective pallet racks, the calculation of
beam load capacity will always be on the basis of uniformly
distributed beams per pair. For safety storage, the maximum beam
deflection should be less than 1/180 of the beam length.
7) Teardrop pallet rack beams are mostly engineered with
roll-formed steels with different material thicknesses. For
example, the commonly used steel thickness includes 14Ga, 15Ga, and
16 Guage.
| Step-beam size | 3", 3.5", 4", 4.5", 5", 5.5",6", 6.25" |
| Length | 60", 72", 84", 96", 108", 120", 132", 144" |
| Thickness | 14Ga, 15Ga, 16Ga |
8) For step beams in selective pallet racking systems, a lot of
supportive options are available for safe and efficient material
picking and storing such as beam support bars and step beam-matched
wire decks.
