Highly compatible Teardrop Style Warehouse Pallet Racks
Teardrop warehouse pallet racks is a widely used and best-known
pallet storage racking system for all kinds of warehouses and
distribution centers. If you are looking for a storage system that
can simply adapt to your different storage needs, a teardrop pallet
racking system is an excellent choice for you. Its inter-layer
spacing and load capacity can be easily adjusted and you are able
to add additional pieces and accessories as your requirements.
Teardrop warehouse pallet racks is also called roll-formed selective pallet rack and teardrop
pallet rack is a nickname because there are teardrop-shaped holes
aligning side by side along the columns of uprights. With these
teardrop-shaped holes, the teardrop pallet rack can be easily
adjusted. New frames, beams, and accessories can be added on
directly.
Racks can be adjusted to different heights or reinforced to bear
different weights to accommodate various load sizes. And various
pallet rack accessories including pallet supports, cross bars, wire
decking, row spacers, wall ties, column protectors, concrete
anchors, shims, and so on can be quickly anchored.
| Name | Teardrop (US) Pallet Rack | Material | American standard steel |
| Depth | 24" - 60" | Weight Capacity | 1000-7000lbs/beam level |
| Width | 48" - 156" | Height | 96" - 432" or Customized |
| Frame Structure Type | Welded & Bolted 3" * 3" Upright frame with Seismic Baseplate |
| Beam Type | 2.5" - 6.25" Step Beam |
| Beam Connector Type | SP & SL Safety Locker |
| Surface finish | Powder Coating & Galvanized |
| Color | RAL6000(Green), RAL5003(Blue), RAL2001(Red Orange), RAL2004(Pure
Orange), RAL1037(Safety Yellow), Or Custom Color As Request |
| Application Environment | Normal Temperature or Cold Room (Max -40C) |
| Certification | RMI Certification, ISO9001, CE,RMI/AS4084-2012 |
| Free Sample | Available |
| OEM, ODM | Available |
| Package | Plastic stretch film, corrugated paper, Cartons, wooden bars,
crates, metal strips, etc. |
| Delivery time | 7~25 days as per order quantity |
| Accessories | Bolts and nuts, Upright protectors, decks, etc. |
| Assembly & installation | Detailed assembly instructions are available |
Advantages of Teardrop Pallet Racking System
Teardrop pallet racking is one of the most popular pallet racking
on the market. It is a great solution for increasing storage,
improving efficiency, or adding to existing structures. The main
benefits of teardrop pallet racks are as follows:
- Cost-effective – less steel is used to cover the same area;
- Easy installation and re-configuration;
- Wide range of rack accessory options – it will help you pick and
choose the accessories you require for your application;
- Beam levels can be moved easily – when you need to accommodate
different sizes of product, you will be able to adjust the rack as
you want;
- Immediate access to every pallet load – you can reach every pallet
directly without removing other pallets;
When to use the teardrop pallet racking system?
Teardrop racking applications are an effective option for
facilities that already have a teardrop rack in place but require
additional constituents or replacements. It is a great choice for
retail, logistics, pharmaceutical, and other basic warehouse
environments. Finally, it is ideal for any facility that stores
products that have a range of sizes and weights, since teardrop
racks can be configured to meet different requirements.
Teardrop pallet rack systems not only improve warehouses'
versatility but also expands their capabilities. By adding and
arranging various teardrop raking accessories into your system, you
can simplify your storage and shipping processes while keeping
expenses down and improving production.

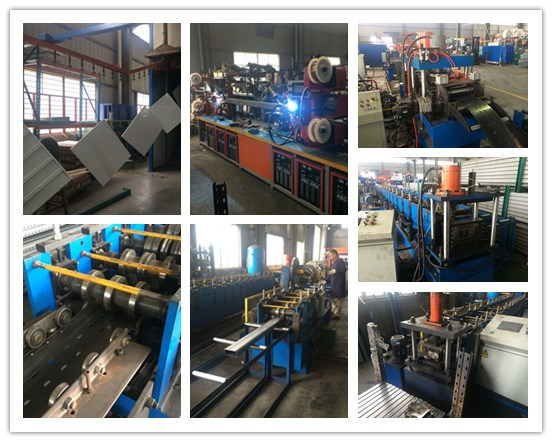

Our products are manufactured and packaged
