Free CAD Design American Teardrop Pallet Racking With Shelving For
Storage
The name teardrop is derived from the punched holes in the column
whose shapes look like a teardrop. Connected with step beams to
form the storage unit, this kind of racking system is the most
commonly used type in the American market, so it is called the
American standard pallet rack system.
Specification Reference
| Name | Teardrop (US) Pallet Rack | Material | American standard steel |
| Depth | 24"-60" | Weight Capacity | 1000-7000lbs/beam level |
| Width | 48"-156" | Height | 96”-432” or Customized |
| Frame Structure Type | Welded & Bolted 3"*3" Upright frame with Seismic Baseplate |
| Beam Type | 2.5"-6.25" Step Beam |
| Beam Connector Type | SP & SL Safety Locker |
| Surface finish | Powder coating &Galvanized |
| Application Environment | Normal Temperature or Cold Room (Max -40C) |
| Certification | RMI Certification, ISO9001, CE |
| Free Sample | Available |
| OEM | Available |
Step beams dimensions
| Step-beam size | 3", 3.5", 4", 4.5", 5", 5.5",6", 6.25" |
| Length | 60", 72", 84", 96", 108", 120", 132", 144" |
| Thickness | 16Ga, 15Ga, 14Ga |
The teardrop pallet rack is very stable and sturdy with simple
beam-to-frame structure using high-strength steel with corrosion
protection. Enduring long-time usage with a lot of merits, the

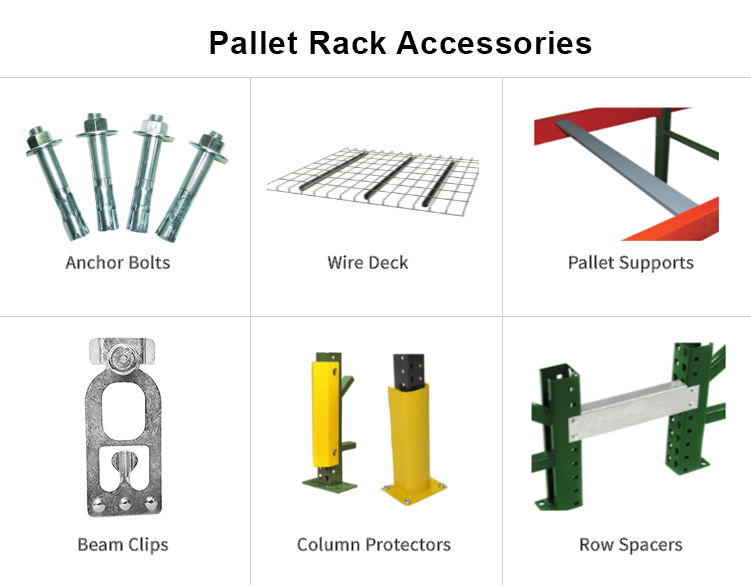

teardrop pallet racking system also has a lot of accessories to
match.
Merits of teardrop pallet rack include:
• Full selectivity and direct access to individual pallets.
• Simple and easy material handling method with only one pallet
deep.
• Flexible and adaptable to any size and weight product.
• Long-span beams with enough storage space are very
cost-effective.
• Interchangeable components manufactured with different suppliers.
• Fast installation and maintenance-free design.
Teardrop pallet rack can be matched with shelves to form a flat
storage surface for unpalletized items. Wire mesh decks, plywood,
and metal panel can all be used to create a stable storage shelving
system.
What can Ironstone do for you?
1) Professional Design and Layout
Ironstone has professional racking designers with decades of
experience to help our customers optimize storage space, ensuring
the storage system meets your needs as well as achieves your
long-term goals.
2) Skillful manufacturing
With more than 20 years of experience, Ironstone has 150 skilled
workers as well as a complete set of advanced production equipment.
We are capable of providing you with high-quality racks at lower
costs.
3) Fast Shipment
After production, we can arrange delivery with well-packed racking
products to reach your warehouse in excellent condition within the
agreed timetable.
4) Quick Installation
We have a well-trained installation team. When it comes to
installation, our experienced staff will install your racking as
per the design plans. Before handing over the result to you, we
will make every effort to ensure all racking system installation is
finished without any defects.
