Easy Assemble & Dismantle USA Teardrop Racking Systems
Designed for the American and Canadian markets, Ironstone selective
teardrop pallet racking systems manufactured in China are very
cost-effective compared to other areas at the same quality and
services. Teardrop racks offer excellent selectivity with instant
access to each pallet load for the wide aisle.
Here are some parameters of the teardrop pallet rack for reference
| Name | Teardrop (US) Pallet Rack | Material | American standard steel |
| Depth | 24" - 60" | Weight Capacity | 1000-7000lbs/beam level |
| Width | 48" - 156" | Height | 96" - 432" or Customized |
| Frame Structure Type | Welded & Bolted 3" * 3" Upright frame with Seismic Baseplate |
| Beam Type | 2.5" - 6.25" Step Beam |
| Beam Connector Type | SP & SL Safety Locker |
| Surface finish | Powder Coating & Galvanized |
| Color | RAL6000(Green), RAL5003(Blue), RAL2001(Red Orange), RAL2004(Pure
Orange), RAL1037(Safety Yellow), Or Custom Color As Request |
| Application Environment | Normal Temperature or Cold Room (Max -40C) |
| Certification | RMI Certification, ISO9001, CE,RMI/AS4084-2012 |
| Free Sample | Available |
| OEM, ODM | Available |
| Package | Plastic stretch film, corrugated paper, Cartons, wooden bars,
crates, metal strips, etc. |
| Delivery time | 7~25 days as per order quantity |
| Accessories | Bolts and nuts, Upright protectors, decks, etc. |
| Assembly & installation | Detailed assembly instructions are available |
If you are looking for a cost-saving but also effective method for
your bulky pallets with mixed items, a teardrop-style pallet
racking system is a good choice without wasting your space
utilization.
What's more, if you have more than just palletized cargo, various
accessories can be added for additional and multi-functional
storage choices. Teardrop rack with wire deck shelves is a commonly
seen combination receiving good reviews. With great versatility and
durability, teardrop storage shelving is a worthy investment for
your warehouse operation.
The galvanized wire mesh decks matched with teardrop step beams are
customized according to your rack's width, depth, and load
capacity. Standard waterfall wire decks with U-type channels are
perfectly suitable for step beams. Easy dropping-in installation,
you can obtain a flat storage level for small boxes and scattered
commodities easily and safely.
More specifications of our teardrop pallet racks
► Teardrop upright posts are produced with cold-formed steels with
customized thicknesses ranging from 13 to 15 gauge;
► The columns and bracing consisting of upright frames can be
welded or bolted with different features. For more load capacity,
bolted frames can be chosen, while for easy installation, welded
one is better;
► Step beams for teardrop racks have verified lengths, sections,
and load capacity, very flexible.

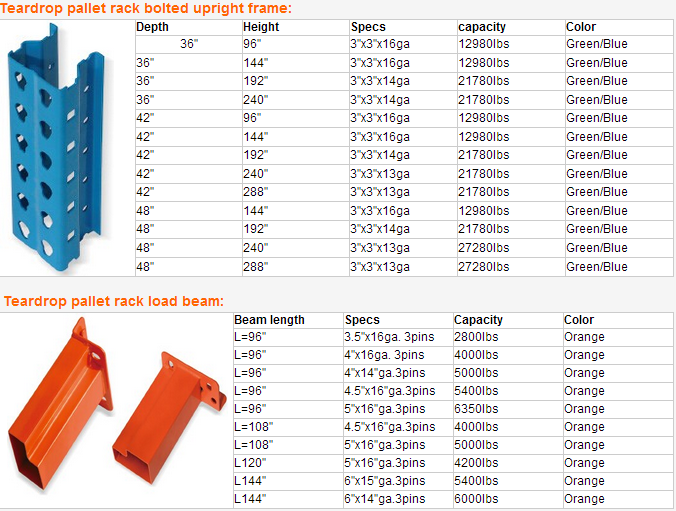

► The column profiles are also optional offering different load
capacities as the following chart indicated;
► With powder-coated surface treating, the selective pallet rack with
teardrop style can be customized to any color you want to go with
your company logo;
► Ironstone offers two kinds of base plates (welded and bolted) for
teardrop columns which can be anchored to the ground for stability
and safety;
Having unnumbered advantages, you won't regret choosing Ironstone's
selective teardrop pallet racks.
Ironstone Service
To better serve our customers, we have established a complete
pre-sale and after-sale. We can offer samples of industrial
racking, samples of warehouse racking, and mobile racking to you
for free. If you have placed the order, we will provide you with
spare wearing parts for your storage systems, moreover, all of our
products come with a 10-year warrant, so you can feel secure in
having any problem solved that you may encounter while using our
products, OEM, ODM service is also available, upon request.
Our efforts are appreciated by our customers and our shelf support
racking, warehouse racking, industrial racking, and pallet racking
is well received in more than 40 countries, such as the USA,
Canada, Australia, NewZealand, Europe, Japan, SouthAfrican and so
on. Please contact us if you want to get more information and look
forward to working with you.
