Customized High-density Very Narrow Aisle Pallet Rack Systems for
Industrial Storage
Overview
In modern warehouses and distribution centers, storage capacity and
efficiency are the most important factors in maximizing a facility.
The desired types of steel storage pallet rack include selective,
push back, drive in, drive through, pallet flow, cantilever, work
platforms and any other related systems. In this article, I will
brief you a very classical pallet rack with denser storage pattern—Very Narrow Aisle pallet racking system.
Very narrow aisle pallet racking system, known as VNA, is a tighter
variation of conventional selective pallet rack configured with
narrower aisles and high-rise storage racks, which provides maximum space utilization within a storage facility. Perfectly suited to products of multiple SKUs, VNA follows a First-in/First-out stock rotation principle.
Details of Warehouse Rack
| Name | Warehouse rack | Material | Steel |
| Shelf levels | 2~15 tiers per shelving unit | Color | (RAL Code) Green, Orange, Blue, Yellow |
| Upright Frame Height | 2500mm~15000mm | Weight Capacity | 500~3000kg per level |
| Beam Width | 1000mm~3900mm | Depth | 700mm~1500mm |
| Finish | Epoxy powder coated for corrosion prevention |
| Usage | Cargos storage |
| Package | Plastic stretch film, corrugated paper, cartons, wooden bars,
crates, and metal strips, etc. |
| Accessories | Bolts and nuts, upright protectors, decks, etc. |
| Certification | RMI/AS4084-2012 /CE/ ISO9001 |
| Delivery time | 7~25 days as per order quantity |
| Assemble & installation | Detailed assembly instructions are available |

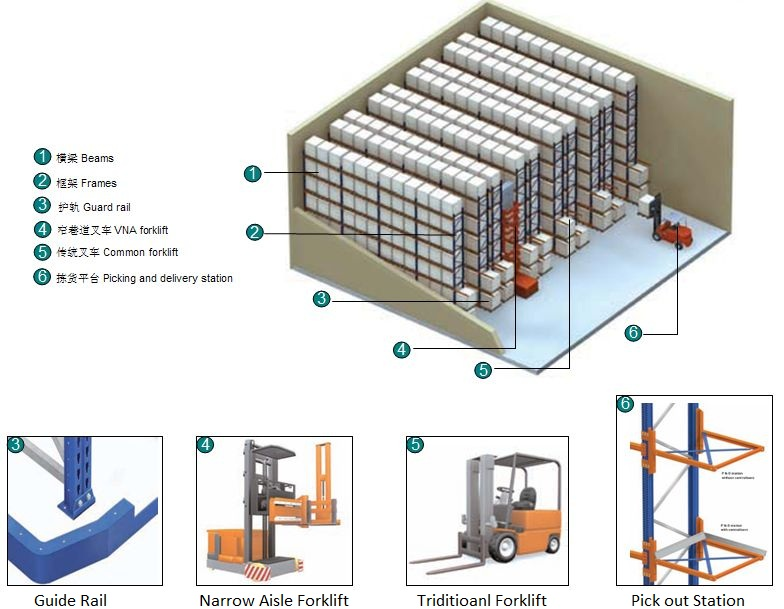

Structure and Working Procedure
VNA pallet racking system shares similar structure and work
procedure with standard selective pallet racking system. In VNA system, aisle widths are usually 1.5m to 2m depending on
the space of the warehouse and specific storage requirement, while
that of standard selective are usually about 3m to 4m accommodating
to different forklifts sizes.
Like selective, VNA also follows a First-in/First-out (FIFO) stock rotation principle offering 100% selectivity. The layouts of
the VNA can be one single row against the wall or two racks
back-to-back connecting by row-spacers.
But with narrower aisles and higher bay heights, there are some
special points about VNA pallet rack systems that worth your
attention.
♦ Guide rails
Guide rails are frequently used in VNA pallet racking system to
assist the safe operation of VNA forklifts avoiding hitting the
rack when travelling along the narrow path. Both floor mounted
rails and eletronic wire guides are available from Ironstone.
♦ VNA forklifts
Pallets, in VNA system, are loaded and unloaded at the front of the
bay by specialized handling equipment in the narrow aisles. The VNA
truck, equipped with a rotation fork turret can realize safe
products storing and retrieval facilitated with guidance systems in
such limited space. Though VNA forklifts are used, traditional
forklifts may also necessary for product picking and delivery out
of the racking structure.
♦ Safety Accessories
In VNA pallet rack system, the frames are usually higher compared
to other kinds of pallet racks. In addition to the compressed
operational space, protective accessories are of essential part for
the whole structures' stability and safety. For example,
row-spacers, column protectors, safty meshes and top braces, etc.
Strength of VNA Pallet Rack
►Maximum Storage Space Utilization
Obviously, VNA can store more products compared with Selective
Pallet Racks by taking full advantage of floor space.
►Full Accessibility and Selectivity
Maintaining the basic structure of selective system, VNA system can
still have full accessibility and selectivity to all pallets, maybe
with a little inconvenience during operation.
►Good Stock Rotation
Following FIFO principle, VNA remains a good stock rotation rate
since all the products are accessible.
►Cost-effective Storage Solution
Considering the premium of land, VNA helps a lot in saving the
investment on space. Besides, the simple structure of racks also
make VNA a cost-effective storage solution especially for small
warehouse with limited budget.
►Easy Inventory Management
In VNA racking system, inventory management can be very easy since
different items can be stored at different levels or bays or racks.
The unloading process is also visible and convenient.
►Flexible Application Options
VNA racking system can be very flexible during application since
they can be installed and dismantled easily. And they can also be
reconfigured with many components and accessories if when some
modifications to the warehouse are necessary.
►Minimized Product Damage
In VNA system, products are well organized and stored and compared
to bulk stacking, the product damage is minimized.
Weakness of VNA Pallet Rack
►Requiring Special Forklifts
Since the aisles in VNA system are slightly wider than the load,
special forklifts are necessary for pallets retrieval and storage.
►Requiring High-level Structure Rigidity
To increase storage capacity, VNA systems are usually designed with
higher rack levels and narrower aisles. That means a higher
requirement for structure rigidity and stability. For safety
concern, some electronic guidance systems or guide rails are
usually fitted into the racks to assist the right operation of
machines.
►Requiring Flat Floor
For VNA system, the requirement for flat floor is more strict than
regular aisle pallet racks.
Though VNA pallet rack is very popular with its countless merits,
no single rack system can solve every storage problem. All you need
is to justify your warehouse layout and storage demands to find the
right dish that suits your taste.
