Compact Very Narrow Aisle Racking System Of Industrial Palletized
Cargoes Storage
Brief Introduction
Very narrow aisle pallet racking is very compact storage solution
for palletized product with reduced laneway width. Forklifts
working in VNA racking system has limited activity space compared
to those vechicles in standard pallet rack. In this case, special
made VNA forklifts are indispensable for effective material
handling.
Details of VNA Pallet Racks
| Rack type | VNA racking,very narrow aisle pallet racking | Material | Roll formed steel Structural steel |
| Beam levels | Customized levels ranged from 2~15 | Beam width | Customized: ranged from1000mm~3900mm |
| Upright frame | Customized height ranged from 5000mm to 15mmm | Load capacity | Customized load ranged from 500~3000kg per beam level |
| Base plates | Welded and bolted are optional | Upright depth | Customized depth ranged from 700mm to1500mm |
| Surface treatment | Epoxy powder coated and galvanized surface are both available for
corrosion protection |
| Package type | Standard package include plastic stretch film, corrugated paper,
cartons, plywood bars, crates, and metal strips, customized package
is available as customer's request |
| After-sale services | Free installation support, detailed assemble instructions are
available |
Main Structures
1.Upright frame height is commonly ranged from 5000mm to 15000mm,
limited by warehouse ceiling height and forklift maximum reach
height.
2. VNA racking beam length isually ranged from 1000mm to 3300mm,
depending on storage requirement and overall safety factors.
3. The aisle width for forklift operation can be decreased to
1500mm to 2000mm according to material handling trucks and
warehouse layout.
4.Guild rails are about 200 mm high manufactured with angle steels.
Main Virtues
1. As one kind of beam-type racking, very narrow aisle pallet
racking systems posess all the features that standard pallet racks
have such as selectivity, accessibility, flexibility and
adaptability.
2. VNA racking offers more pallet positions compared to common
pallet racks in same space.
3. Very narrow aisle pallet rack is cost-saving with less wasted
room.
Minor Faults
1. Commonly used forklifts are not suitable for VNA racking, narrow
aisle forklift must be used with relatively high price.
2. Very narrow aisle racking systems with constrained space require
higher vehicle operational skill of workers.
3. Guide rails should be installed facilitating fast and safe
material handling.
4. For space saving, VNA pallet racking system is higher and
tighter organized leaving stricter demands over warehouse layout
and fire suppression.
Suitable Suitation
1. Warehouses and facilities require higher storage density.
2. Storage products have large quantity with fast stock rotation.
3. The warehouse ceiling height is over 8 meters.

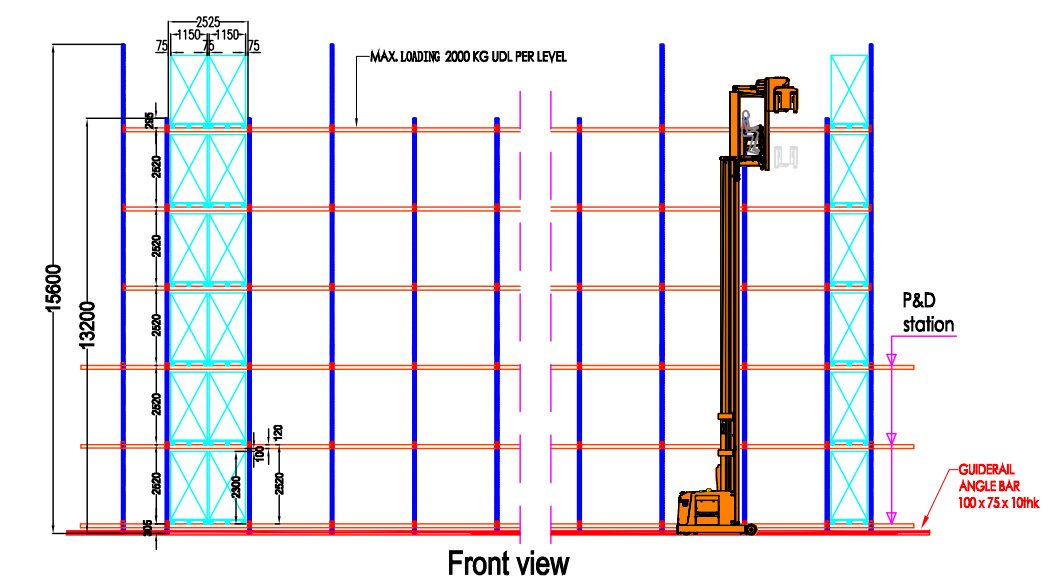

Design Cases from Ironstone
