New Type Warehouse Customized Drive-in Metal Storage Steel Rack

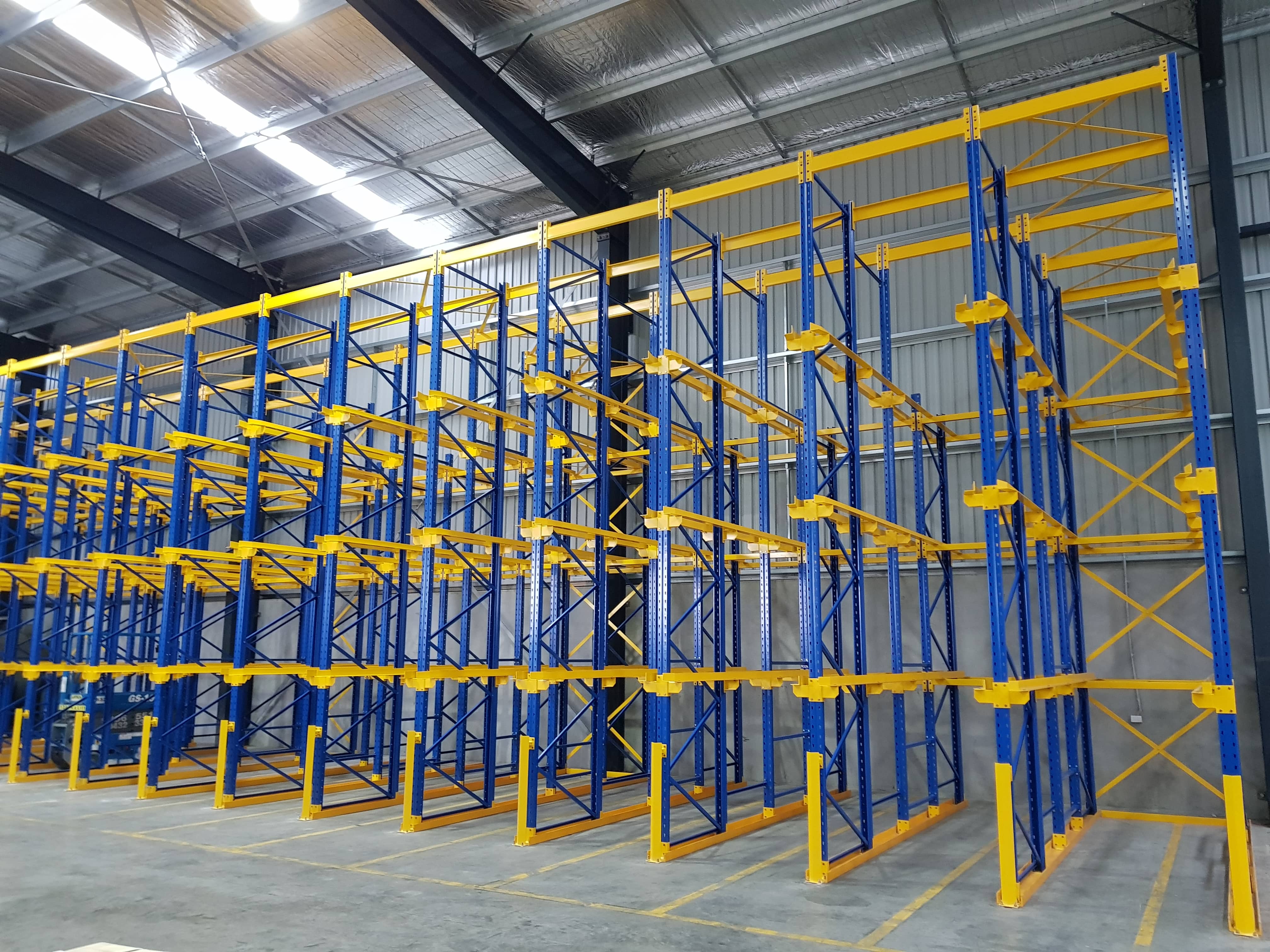

Drive-in pallet racking system is a cost-effective, high-density
storage solution for warehouses. Forklifts are able to drive in the
system directly so that there is no extra aisle for storage and
retrieval. Drive in-pallet rack is closed off at one end while the
drive-through pallet rack is open at both ends. It is best used for
warehouses of high storage density but low stock rotation.
| Specification of Drive-in Pallet Racking System |
| Height | Up to 13.5m |
| Pallet load | Up to 1500kg |
| Compartment height | Up to 3000mm |
| Compartment width | Up to 1800mm |
| Temperature range | -25°C to +35°C |
Drive in pallet racking system is a high-density storage solution
available for your warehouse design. If you are going to store
large quantities of similar or identical goods, drive-in pallet
racking system is a good choice.
Compared with conventional standard pallet racks, Drive-in Pallet
Racking System is able to free up as much as 90% of existing
available ground space, making great advantage of the space in your
facility. However, the selectivity of the system is greatly reduced
correspondingly. Thus, it is not suitable for storing products of
mix types.
Drive in pallet racking system follows the principle of FILO, which
means the first stored pallet will be the last one to pick up and
individual pallets can be accessed one by one from the front of the
rack.
Features and Benefits of Drive-in Pallet Racking System
- Increased space utilization rate: more storage per cubic meter than
any other storage system.
- High-density storage: maximizing floor and storage space.
- Limited stock rotation: ideal for seasonal goods and chilled
storage.
- FILO rotation order: Accessible by the FILO principle.
- Limited aisles: more efficient use of space in your facility.
- Prioritize density: the system utilizes density over selectivity.
- Customizable design: it can be customized for your pallets and
material handling equipment.
Name | Drive-in pallet rack system |
Color | RAL color system, customized |
Loading Weight | 1000kg-2000kg per pallet, customized |
Material | Cold-rolled Steel |
Characteristic | First in-Last out(FILO) |
Standard accessories | Safety protectors, bolts, nuts, safety pin |
Components | Upright frame(upright, horizontal bracing, diagonal bracing),
beams, pallet rails |
How Does Drive-in Pallet Racking System Work?

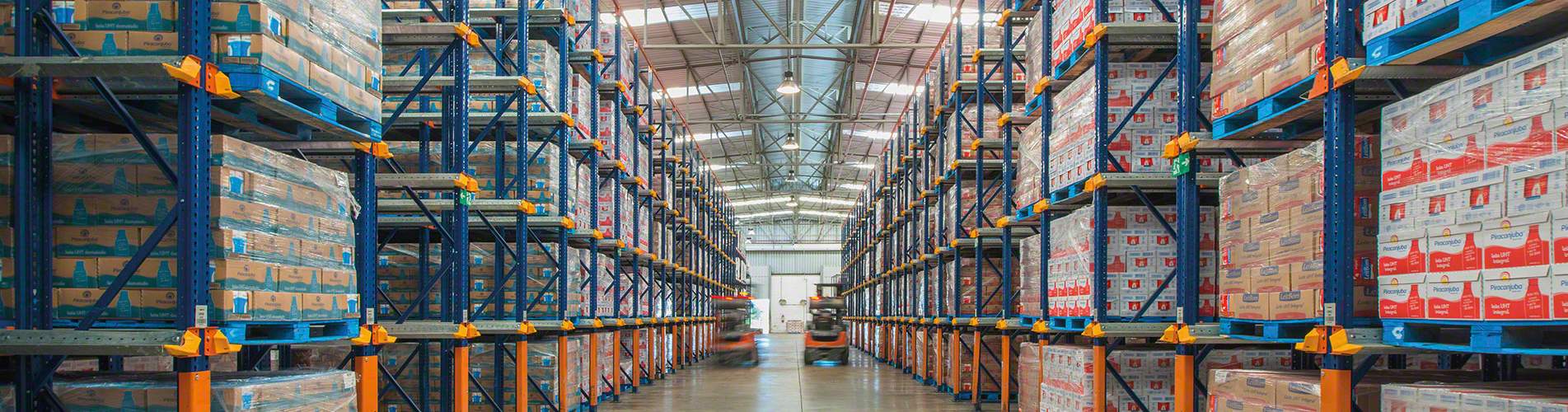

Drive-In pallet rack systems store pallets that are driven into the
rack system by forklift operators and loaded onto horizontal rails.
Drivers then remove the pallets from the same entry point at which
they were loaded when it’s time to move them. Drive-in rack systems
are typically placed against a wall or are otherwise closed at one
end of the system.
