Heavy Duty LIFO Double Deep Pallet Rack Systems for High-Density
Storage
Double deep pallet racking system is similar to selective racking
system but with two units of deep racks. Compared with the
selective racking system, it increases storage density but
decreases cargo selectivity. And a specialized truck is needed for
the storage and retrieval of the inner pallets.
It is best suited for goods that don’t require FIFO inventory
rotation. In double deep pallet racking, goods units are stored
mechanically by forklift trucks which move along parallel aisles of
the racking system.
| Name | Double Deep Pallet racking | Material | High Strength Steel-/American Standard Steel |
| Beam levels | 2~15 tiers per bay rack | Color | (RAL Code) Green, Orange, Blue, Yellow, Etc. |
| Upright Frame Height | 2500mm~15000mm | Weight Capacity | 500~3000kg per level |
| Beam Width | 1000mm~3900mm | Frame Depth | 700mm~1500mm |
| Finish | Epoxy Powder Coated for corrosion prevention |
| Usage | Cargos Storage |
| Package | Plastic stretch film, corrugated paper, Cartons, wooden bars,
crates, metal strips, etc. |
| Accessories | Bolts and nuts, Upright protectors, decks, etc. |
| Certification | RMI/AS4084-2012 /CE/ ISO9001 |
| Delivery time | 7~25 days as per order quantity |
| Assemble & installation | Detailed assembly instructions are available as well as dispatching
installation engineer for project installation at the site. |
In this system, pallets are stored in two depths, allowing greater
storage density while keeping access to the pallets simple and
relatively quick. Unlike selective pallet racking, in double-deep
pallet racking system, operators are not able to get direct access
to all pallet stock.
Double deep pallet racking must use special forklifts prepared for
this type of system, which is equipped with telescopic forks or
specially designed pantograph mechanisms to access the second
pallet correctly.
This is an efficient and powerful system that is easy to assemble
and adjust to load levels. In addition, it is an adjustable pallet
racking, perfectly adapted to different weights or volumes of
goods.
How does double deep pallet racking system work?

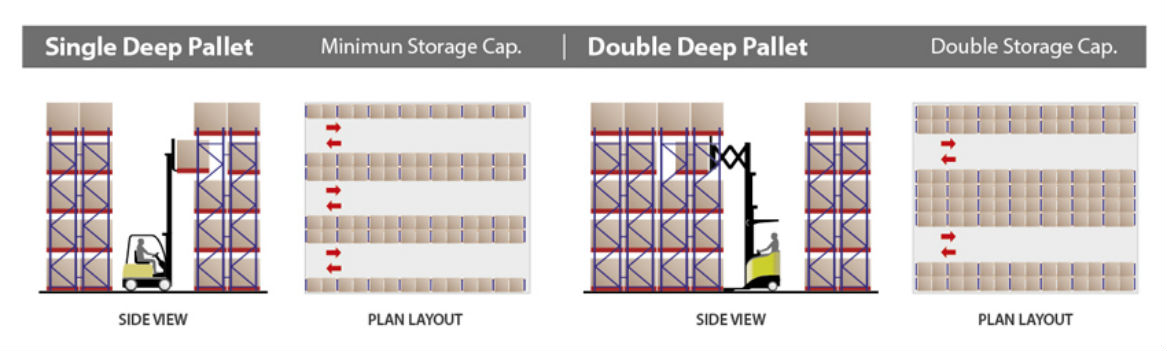

The double deep pallet racking system increases the available
storage space by simply storing pallets in two depths instead of
one compared with the selective pallet racking system.
Two pallets are accessed from the same aisle, reducing the number
of aisles by half compared to the selective pallet racking system.
In summary, double-deep racking increases the storage density of a
warehouse by reducing the number of aisles to leave more space for
storage.
Since direct access can only be used for front unit loads, this
double-deep LIFO inventory management system is recommended for
storing identical or highly rotated products with several pallets
per SKU.
Advantages of Double Deep Pallet Racking System:
►Density: Fewer aisles are required, providing as much as 33% more
pallet positions than selective racking in the same square footage.
►Selectivity: access to the pallets continues to be simple and
relatively quick, maintaining 50% immediate acessibility and
reasonable rotation of goods.
►Installation: easy to install with low cost for maintenance.
