Warehouse Storage Push Back Pallet Racking Trolley System With
Efficiency
Push back pallet rack is another type of high density storage
solution in addition to VNA, double deep and drive-in racking
systems. Using steel trolley impelled by gravity, pallet loads in
push back rack are stored on the trolleys at certain angle in each
storage bay. For palletized products with large quantities, push
back racking can be very efficient.
Specifications of Push Back Rack
| Product name | Push back pallet rack | Material | High strength steel |
| Rack layers | Customized ranged from 2 to 15 | Rack type | Gravity taken racks |
| Upright frame height | 2500mm~15000mm | Weight capacity | 500~3000kg per level |
| Suitable pallets | Standard pallets and customized sizes | Storage depth | Customized, 2 to 6 pallets depth |
| Finish | Epoxy powder coated for corrosion prevention |
| Feature | Palletized cargoes storage and retrieval facilitated with trolley |
| Package | Plastic stretch film, corrugated paper, cartons, wooden bars,
crates, and metal strips, etc. |
| Accessories | Bolts and nuts, upright protectors, decks, etc. |
| Certification | RMI/AS4084-2012 /CE/ ISO9001 |
| Delivery time | 7~25 days as per order quantity |
| Assemble & installation | Detailed assembly instructions are available |
Design Features
1) Push back racking system reduces redundant working aisles
connecting all the storage lanes together like drive-in rack.
2) In each storage bay, push back racking can store up to 6 pallet
loads with up to 5 trolleys.
3) Limited by the forklift maximum operation height, the push back
rack height is commonly within 6 meters.
4) For safe and convenient operation, the weight of each pallet
load is suggested to less than 1500kgs.
First-in and Last-out Working Principle
When you start the stocking and retrieving work procedure in your
push back racking systems, the FILO order is followed. For example,
when the forklift taking the first pallet to the system, the
trolleys are stacking tegether at the bay front. The first pallet
will be located at the first trolley, then pushed into the lane.
And the second, third and fourth pallet will be handled with the
same process repeatedly util all the pallets are stored. The
retrieval procedure is just to the contrary.
Why push back racking systems are recommended?
1) Offering high storage density, the price for push back racking
is acceptable.
2) The system safety and operation security are improved greatly
since no forklifts are working inside the rack structure.
3) The storage variety are large since different bays can store
different product types.
4) In push back racking system, each pallet can be accessed
directly since they can all slide down to the picking aisle one by
one.
5) The trolleys in push back racking can help to accelerate the
material handling speed with less energy cost.

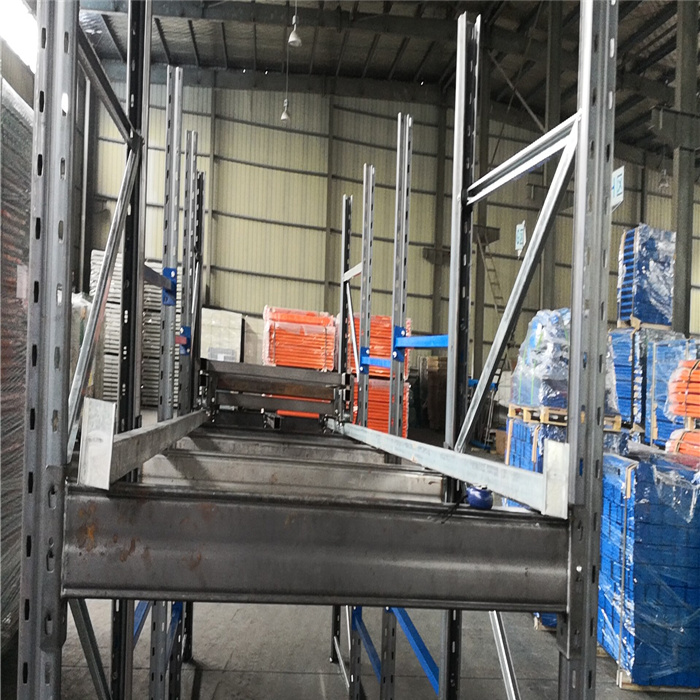

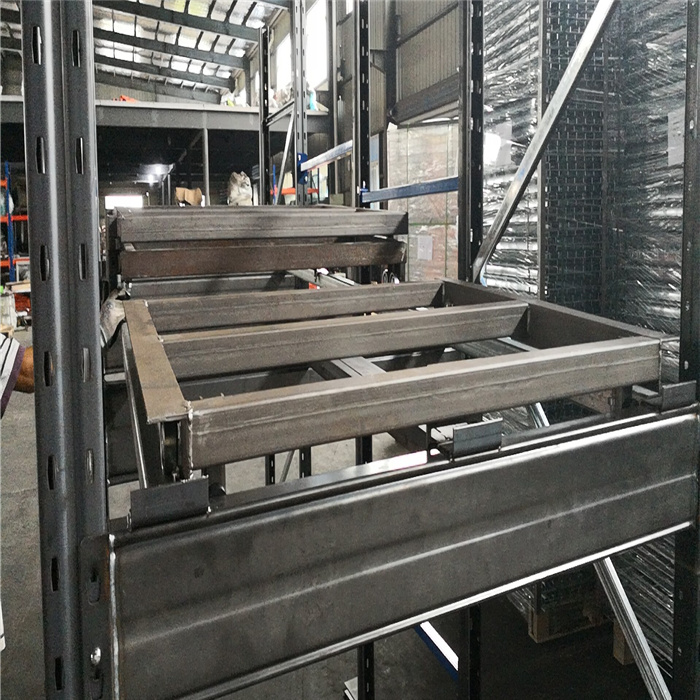

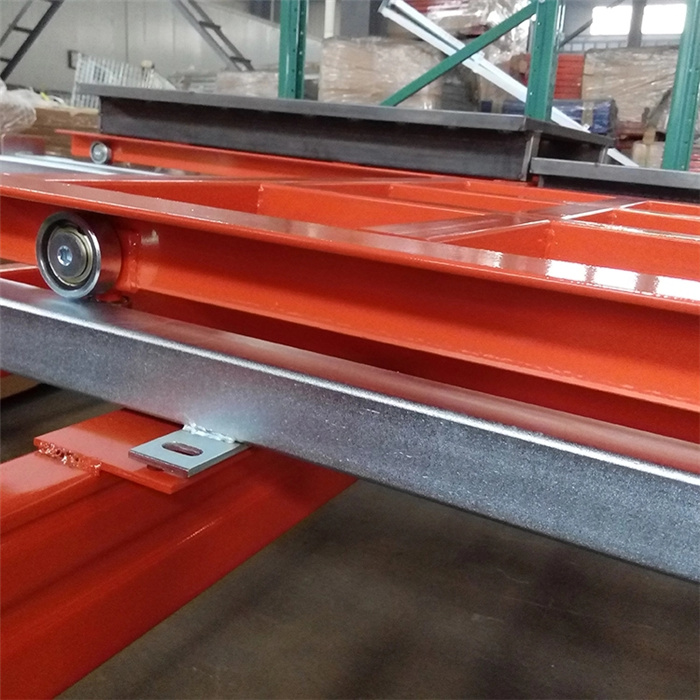

Ironstone Push Back Racking Production
