Advanced Automatic Radio Shuttle Pallet Racking System for High-Density Storage

The radio shuttle pallet racking system is a semi-automatic storage system. It is equipped with shuttle trucks that can be controlled by an operator with a controller. The forklift is in charge of loading and unloading pallet cargoes on the shuttle. And the shuttle is able to transport pallets to any position in each lane. The storage density and efficiency are high in the system and it is favorable for storing large volumes of products with high throughput.

Radio shuttle pallet racking is a semi-automated solution for storing large capacity palletized goods and large quantities of stored products. They are often used in warehouses and distribution centers for food and beverages, or warehouses with special storage conditions. Radio shuttles are particularly effective for distribution or logistics centres, where you may need fast and efficient supply and distribution.

At the same time, this type of pallet storage and retrieval system allows for maximum optimization of storage capacity as it reduces the need for aisles between racks. With this system, you can store different numbers of pallets in depth depending on specific needs or seasonal loads. At the same time, each pallet can be accessed quickly.

Instruction about Radio Shuttle Controlled Platform

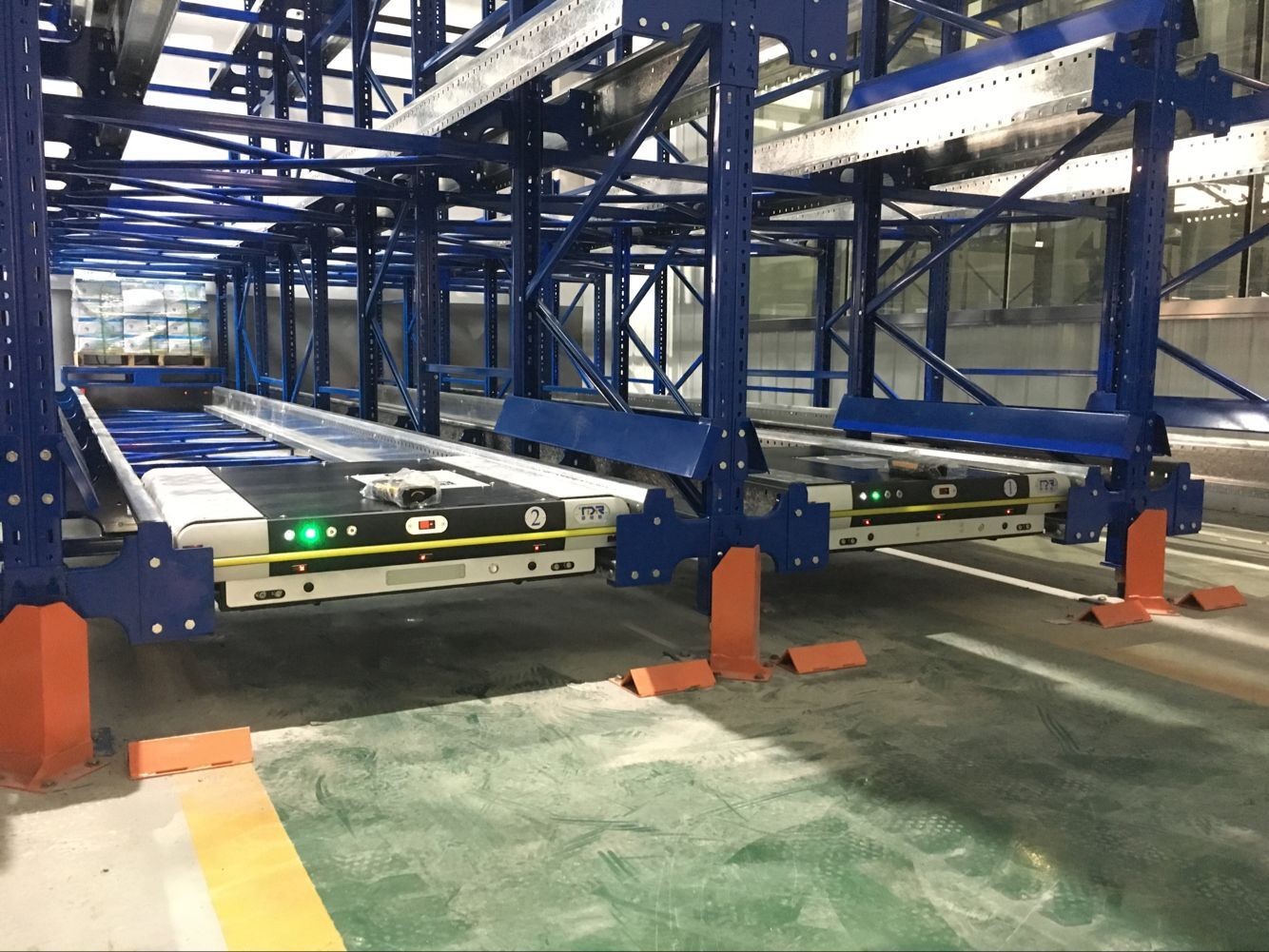

The radio shuttle rack system uses a radio-controlled platform that moves automatically along the rack itself. The special design and engineering allow the platform to move smoothly, whether it is storing or retrieving pallets at this time.

The material handling machines do not need to enter the aisles of the radio shuttle storage system in order to place or retrieve pallets. This significantly reduces the distance they have to travel, reduces the need for new lifting equipment, reduces maintenance costs, and reduces costs for operators and drivers.

There is less damage to the steel structure of the warehouse racking as the hoist does not need to access the racking system to place or remove pallets. Each radio shuttle platform relies on a very durable lithium battery with long autonomy, enough for over 16 hours of continuous operation. It is also extremely fast to recharge, taking less than 3 hours to complete.

The forklift truck driver can easily control all storage and retrieval movements of the automatic shuttle platform via remote control. The absence of forklift trucks in the warehouse tunnel and the construction of the system means that the risk of accidents is significantly reduced. At the same time, storage capacity is significantly increased.

Characteristics of Radio Shuttle Pallet Racking System

• The radio shuttle platform is capable of speeds of 0.8 m/s(loaded) to 1 m/s(unloaded).

• This warehouse racking system is suitable for different types of pallets: Euro pallets, industrial pallets, and combination pallets. Of course, the platform can also transport large bags, plastic pallets, etc. Each pallet can weigh up to 25 kg.

• Each pallet can weigh up to 25 kg. 1500 kg.

• The storage system is used in refrigerated warehouses and can also be operated at temperatures up to -20°C.

• The depth of the storage aisle per pallet unit is practically unlimited. The radio shuttle racking system can be adapted to different storage spaces.

• The price includes very durable industrial batteries. They ensure 16 hours of operation and reduce charging times. Electromechanical lifting device for easy maintenance.

• Radio shuttle racking systems for warehouses are available with LIFO and FIFO storage methods.​

Founded in 2004, Ironstone-Meca Industry is a professional storage equipment manufacturer providing full ranges of services including design, consultation, production, technical guidance,  installation and maintenance support.

The mission of Ironstone-Meca Industry is to be an innovation driven, customer oriented company with excellent products, perfect storage solutions, all round customer services and full commitment of on-going improvement in the Logistics industry today and the future.

Completed countless successful projects received numerous praises, Ironstone has always treated rack safety and quality as the foremost factor. Having our products certified in US and Australia market with RMI standard testing and AS4084-2012 standard, Ironstone has developed some big agents in the glabal market and will develop more under the support of our loyal customers.

Helping our customers to find the perfect warehouse managment solutions, Ironstone can maximize your profits with lowest cost. You will get warm welcome from us if you visit our factory in China!
