Industrial Warehouse Customized Selective Storage Pallet Rack
System
As a basic storage rack, selective racks are widely used in storage
and logistics rack form, which is simple, and easy to access. Most
of the heavy racks in modern warehouses are derived from it.
Selective pallet rack systems provide easy accessibility to all
products at all times, important if the inventory is rapidly
depleted and restocked (called quick turnover).
Name
| Pallet racking | Material | High Strength Steel |
| Beam levels | 2~15 tiers per bay rack | Color | (RAL Code) Green, Orange, Blue, Yellow, Cuetom, Etc. |
Upright Frame Height
| 2500mm~15000mm | Weight Capacity | 500~3000kg per level |
| Beam Width | 1000mm~3900mm | Frame Depth | 700mm~1500mm |
Finish
| Epoxy Powder Coated for corrosion prevention |
Usage
| Cargos Storage |
Package
| Plastic stretch film, corrugated paper, Cartons, wooden bars,
crates, metal strips, etc. |
Accessories
| Bolts and nuts, Upright protectors, decks, etc. |
Certification
| RMI/AS4084-2012 /CE/ ISO9001 |
| Delivery time | 7~25 days as per order quantity |
Assemble & installation
| Detailed assembly instructions are available as well as dispatching
installation engineer for project installation at the site. |
Accessories

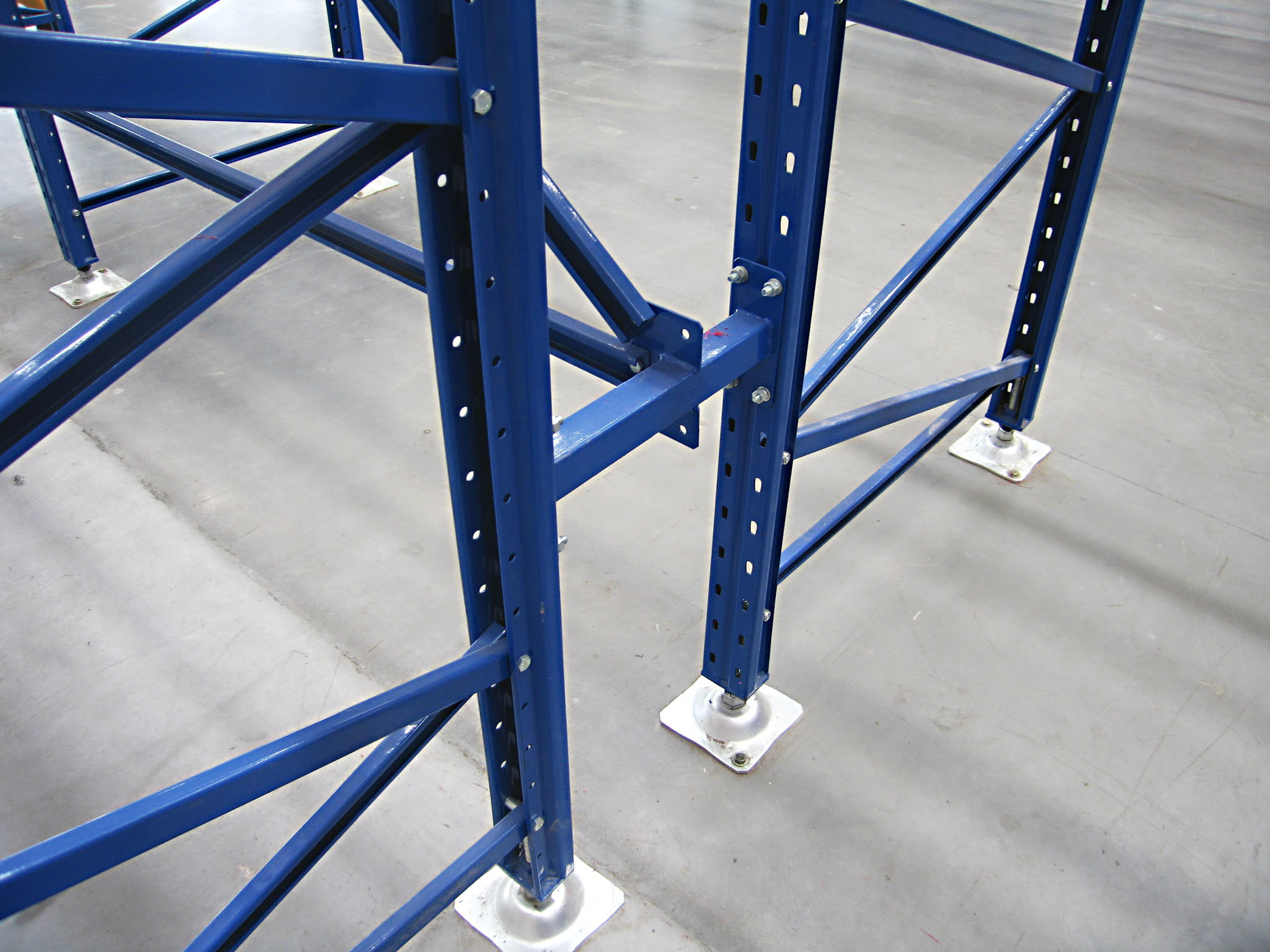

♦ Upright frames
Frame is one of the most important structural components of
selective pallet rack, it mainly plays a supporting role, the
higher the load requirements of the rack, the higher the material
and size requirements of the frames. Columns are generally composed
of two frames, a few horizontal bracing, and a few diagonal
bracing. The purpose of bracing is for better load-bearing, more
stable structure, and avoiding impact and damage.
♦ Beams
The beam is also one of the most important structural components of
the rack, the cargoes are usually directly placed on the beam, so
the beam is the main bearing structure of storage. Its installation
is relatively simple, after erecting the column on the ground,
adjusting the distance of two columns to the length of the beam,
then it would finish mounting the beam.
♦ Wire decking
Wire decking belongs to the accessories of pallet racks. It is
installed around the racks, which mainly blocks and protects the
cargo on the shelves from falling.
♦ Column protectors
The role of column protectors is to prevent the shelves from being
hit. They are installed on the ground near the columns to prevent
forklifts from hitting, so as to protect the shelves and the safety
of the product.
Selective pallet rack component
Characteristics
1. First-in, first-out (FIFO) inventory management. In and out of
the warehouse is not restricted by the order of cargo, convenient
for customers to access products.
2. Upright frame is composed of column, horizontal bracing, and
diagonal bracing with the screw. In order to prevent forklift
collisions, upright protectors and frame barriers can be installed.
Wire deck, pallet support bar, and steel panel could be installed
according to the specification of the cargo.
3. Strong loading capacity, wear resistance, and impact resistance.
4. Using mechanical handling equipment for storage operations.
Our product packaging transportation
①. Before the product leaves the factory, check each part of the
product to test whether the product can be used and installed
normally.
②. Products in the process of packaging, special parts such as
crane support and parts, separate packaging, and special packaging
treatment.
③. Packaging method: Because of the large length and size of the
tower crane, we usually use the large container loading mode.
④. If you need OEM or ODM services, there is a separate product
packaging scheme and logo printing standards, please connect your
plan and standards with us in advance. We can package the product
according to your request.
⑤. Because the tower crane is a large weight, so we usually choose
sea, land, and railway transportation.
