Warehouse Storage Heavy Duty Roll Formed Teardrop Pallet Racking
System with Factory Price

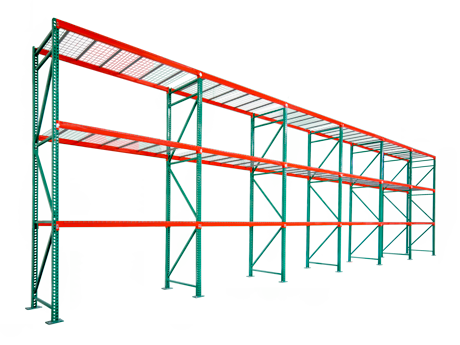

The teardrop pallet rack is one of the most common in warehouses
due to its ease of use and strength. The teardrop design takes its
name from the teardrop-shaped apertures that run along the length
of the upright support pillars. Insert the horizontal and load
beams into any of these holes using mounting clips. This setup
allows you to adjust the height of your shelves as well as remove
and replace them as needed.
The majority of teardrop pallet rack systems are compatible with
the traditional teardrop pallet racking design. The center
reinforcement provides additional support while boosting strength
and stiffness. Larger columns can withstand more impact. When
compared to other products on the market, it has a longer service
life and requires no extra maintenance. In fact, it can be an
excellent facility for industrial, retail, and general storage
uses.
Why is the rolling-forming process used?
Roll forming pallet rack describes the method of processing cold
rolled steel into pallet rack columns and beams. When the steel is
flat, it is punched out (where the beam will be attached), and it
is then rolled into the desired shape, which also gives the column
its strength and the desired ability. For many industries,
rolling-forming pallet racks are an economical option for
warehousing and distribution.
It is lighter but is strong, flexible, and durable. Teardrop
shelves are one of the most popular roll-forming pallet racks.
Posts of rolled molded steel are welded to the substrate to
increase stability. The beam is then easily clamped into tear-like
openings on the column to form a frame. It allows for faster and
easier clip-together types of installation and reconfiguration.
Product specifications
| Name | Teardrop (US) Pallet Rack | Material | American standard steel |
| Depth | 24" - 60" | Weight Capacity | 1000-7000lbs/beam level |
| Width | 48" - 156" | Height | 96" - 432" or Customized |
| Frame Structure Type | Welded & Bolted 3" * 3" Upright frame with Seismic Baseplate |
| Beam Type | 2.5" - 6.25" Step Beam |
| Beam Connector Type | SP & SL Safety Locker |
| Surface finish | Powder Coating & Galvanized |
| Color | RAL6000(Green), RAL5003(Blue), RAL2001(Red Orange), RAL2004(Pure
Orange), RAL1037(Safety Yellow), Or Custom Color As Request |
| Application Environment | Normal Temperature or Cold Room (Max -40C) |
| Certification | RMI Certification, ISO9001, CE,RMI/AS4084-2012 |
| Free Sample | Available |
| OEM, ODM | Available |
| Package | Plastic stretch film, corrugated paper, Cartons, wooden bars,
crates, metal strips, etc. |
| Delivery time | 7~25 days as per order quantity |
| Accessories | Bolts and nuts, Upright protectors, decks, etc. |
| Assembly & installation | Detailed assembly instructions are available |
The following are the advantages of a teardrop rack:
► Compatibility - Most teardrop rack uprights, beams, and accessories can be used
interchangeably with other vendors, making shopping for equipment
easier.
►Security - Using beam pins and safety clips, as well as basic physics,
ensures that your rack system is sturdy and resistant to accidental
unloading.
► Ease of Use - Teardrop racks are simple to install and do not require any
specific expertise or tools.
► Flexibility - Because the punching style of the teardrop rack is standard,
warehouse managers can mix and match different uprights and beams
to meet their storage demands.
Application
1. Universal application system.
2. Industrial, retail, and general warehousing.
3. Easily reconfigured.
4. Many accessories are available.
5. Versatile for inventory changes.
6. Economical installation.
7. Immediate access to every pallet load.

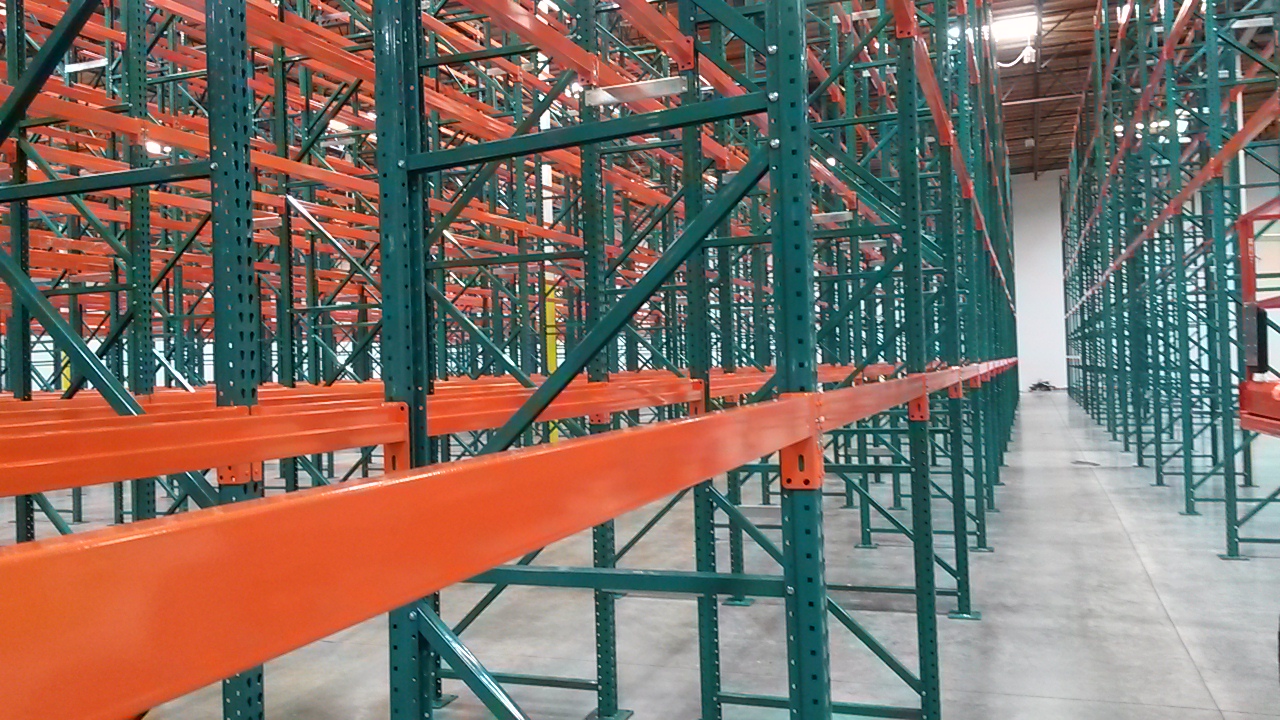

When to use the teardrop pallet racking system?
Teardrop racking applications are a good solution for
establishments that already have a teardrop rack but need more
constituents or replacements. It is an excellent solution for
retail, logistics, pharmaceutical, and other basic warehouse
applications. Finally, because teardrop racks can be built to
fulfill a variety of criteria, they are ideal for any facility that
stores products of various sizes and weights.
Teardrop pallet rack solutions not only increase the variety of
warehouses but also expand their possibilities. By adding and
arranging various teardrop raking accessories into your system, you
can simplify your storage and shipping processes while keeping
expenses down and improving production.
Why should you choose Ironstone for your material handling and
storage needs?
♦Professional design & production
As a storage system supplier, Ironstone has professional warehouse
design specialists for your warehouse storage plan. The Ironstone
production team is equipped with advanced production equipment and
experienced and skilled workers who can make all materials in the
right way for the storage systems in your warehouse as we plan.
♦Valid certification from an authoritative institution
Ironstone’s racks have been strictly tested by authoritative
Institutions in the U.S., which proves that our racks completely
comply with the RMI standard. Therefore, you can rest assured that
all storage systems established from Ironstone are 100%
industrial-safe.
At the same time, our products have passed the test in Australia.
It is the latest AS4084-2012 standard norm proposed by Monash
University, which is the strictest safety norm in the racking line.
♦Fast delivery of your order
Ironstone has more than 250 skilled production employees and a
variety of advanced manufacturing equipment, which ensures a great
production capacity. Usually, the delivery time is within 20
working days. And if the products you buy are standard ones that we
already have in stock, the delivery time will be within 3 days.
♦Consistent after-sale service
We not only design, and manufacture but also provide non-stop
after-sale service, we could be in charge of shipment, and
installation for your order. Of course, if you want, we could send
detailed assembly drawings and videos which will help your
installation in your warehouse. Whenever you find any defects
during or after the shipment, we will get it done the first time.
It is unnecessary to have any worry to work with us.
