Industrial Metal Heavy Duty Shelving Teardrop Pallet Rack with High
Quality
Teardrop tray racks feature a bolt-free design with strong welded
tensile steel columns and heavy-duty channel supports for a strong
and reliable upright truss. The Teardrop Selective Shelving System
is so named for its enormous selectivity, allowing access to each
individual pallet. This style of construction offers a closed tube
design compatible with other teardrop patterns, making it an ideal
complement to existing rack beams while having the benefit of
stronger, stronger uprights.
This space-maximizing style is considered the most economical
option for storing bulk items like boxes or pallets in warehouses.
Ease of assembly and rack adjustment capabilities are design
advantages offered by bolt-tear drop pallet racking systems. A 100%
selective teardrop tray rack system allows access to each tray.
This shelf design is both economical and efficient. That's because
it can be assembled and adjusted quickly without tools, and it's
affordable to buy.
The following are the benefits of the teardrop pallet rack:
♦Compatibility-Most tear bead rack posts, beams, and accessories can be used
interchangeably with other suppliers, making it easier to purchase
equipment.

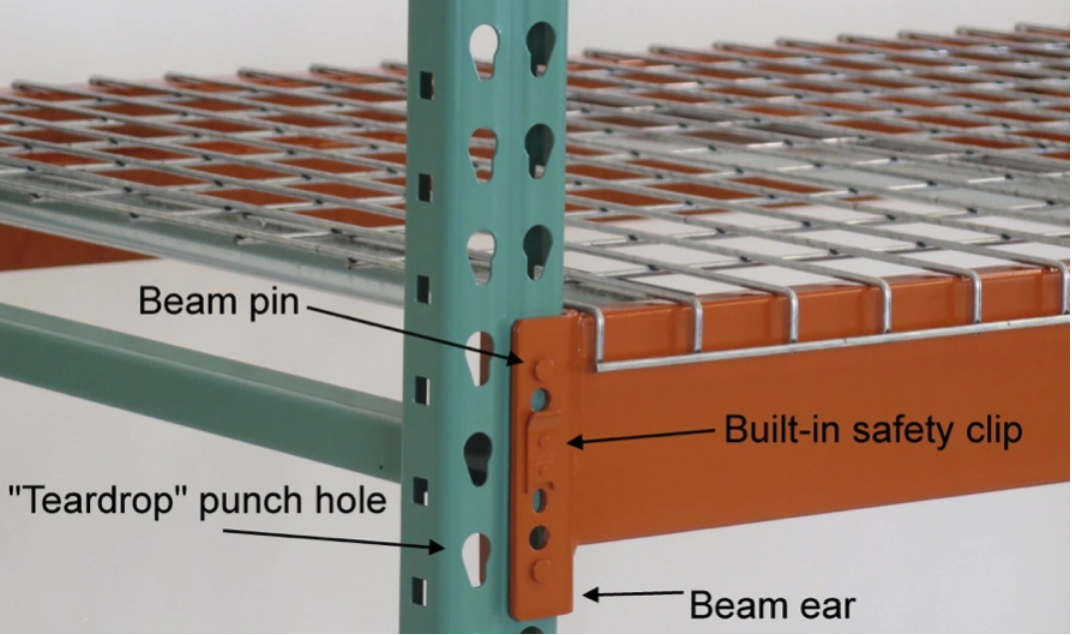

♦Safety-Basic physics, and the use of beam pins and safety clips, ensure
that your frame system is durable and resistant to accidental
unloading.
♦Ease-of-use-Teardrop racks are easy to install and do not require professional
skills or tools.
♦Flexibility-Standardization of the tear ball rack punch style allows warehouse
managers to mix and match different columns and beams to meet their
storage needs.
Main parts of teardrop pallet racks
(1)Upright frames
Available Posts:
The standard post sizes are 3.0"*3.0" and 4.0"*3.0" with 12Ga~16Ga
thickness available. After combination of support bracings , the
teardrop pallet rack upright frame will be formed in different
dimensions according to different requirements.
Standard upright size:
Multiple bracing patterns:
One upright frame is composed of two posts and several horizontal
and diagonal bracings, as well as footplates. The model A frame is
the most standard type and mode B is for higher loading capacity
with more horizontal bracings.
Following Frame Capacity are based on the beam spacing 48"
| Upright Frame capacities | 3.0"*3.0"*15Ga | 3.0"*3.0"*14Ga | 3.0"*3.0"*13Ga | 3.0"*3.0"*12Ga |
| 18200 (LBS) | 22200(LBS) | 26600(LBS) | 28530(LBS) |
(2) Teardrop Beams

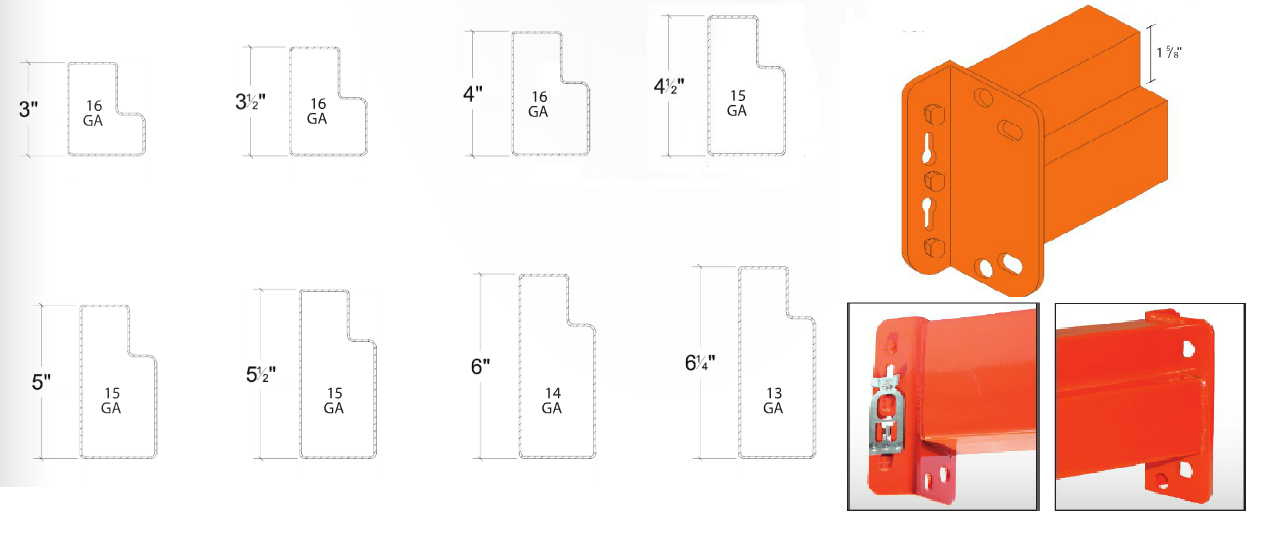

Available beam sections:
The most popular teardrop beams are step style with 1-5/8" step
height, which could be used with wire decks as well as wood decks
for additional request.
Optional beam lengths
Here are some beam capacities of different beam lengths and beam
heights:
Beam Capacity (Per Pair) - LBS | BH=3.0" | BH=3.5" | BH=4.0" | BH=4.5" | BH=5.0" | BH=5.5" | BH=6.0" |
| Beam Length: 96" | 2720 | 3700 | 5005 | 5810 | 6830 | 7790 | 11330 |
| Beam Length: 108" | 2280 | 3030 | 4000 | 5000 | 6110 | 7000 | 10100 |
| Beam Length: 120" | 1900 | 2500 | 3300 | 4210 | 5370 | 6180 | 9000 |
| Beam Length: 144" | 1380 | 1820 | 2350 | 3020 | 3820 | 4650 | 7010 |
Strengthened step beams:
Ironstone still owns the steel king-style teardrop beams with ribs
built around the beam face, which are more durable and stronger.
Parameters of the teardrop pallet rack for reference
| Name | Teardrop (US) Pallet Rack | Material | American standard steel |
| Depth | 24"-60" | Weight Capacity | 1000-7000lbs/beam level |
| Width | 48"-156" | Height | 96”-432” or Customized |
| Frame Structure Type | Welded & Bolted 3"*3" Upright frame with Seismic Baseplate |
| Beam Type | 2.5"-6.25" Step Beam |
| Beam Connector Type | SP & SL Safety Locker |
| Surface finish | Powder coating &Galvanized |
| Application Environment | Normal Temperature or Cold Room (Max -40C) |
| Certification | RMI Certification, ISO9001, CE |
| Free Sample | Available |
| OEM | Available |
