High-Quality Boltless/Rivet Rack Shelving
Boltless/Rivet shelving is one of the classic models of shelving.
Boltless shelves/rivet shelves are assembled using rivets rather
than using standard bolts, clips, and fasteners to assemble other
similar types of shelves. The rivets are embedded at the end of
each beam, firmly locked in the keyhole-shaped groove on the post,
creating a solid storage space.
No special tools are required except for holding the shelf in place
with a rubber hammer. It is widely used because of its ease of
assembly and adaptation to any space and load type (it can bear up
to 1,850 pounds per shelf). The distinctive feature of the boltless
shelf is the quality of the steel and paint used, ensuring the
safety, strength, and durability of the installation. Heavy-duty
metal pointed bolt-less shelves come in various sizes and surface
treatments for various use in warehouses, offices, shops, or
workshops.
Boltless /Rivet Shelving Specifications Reference
| Item | Spec (mm) | Thickness (mm) | Capacity (kg) |
| Angle post | 32*32 | 1.0-2.0 | 500-1000 |
| 35*35 | 1.0-2.0 | 500-1000 |
| 38*38 | 1.0-2.0 | 500-1000 |
| 47*47 | 1.0-2.0 | 500-2000 |
| Double rivet beam | 50*15 | 0.8-2.0 | 100-250 |
| 55*15 | 0.8-2.0 | 100-250 |
| 67*21 | 0.8-2.0 | 100-250 |
| Single rivet beam | 25*25 | 1.0-2.0 | 50-150 |
| Shelf levels | 2~12 tiers per shelving unit |
| Color | Gray, White, Black, Blue, Etc. |
| Finish | Epoxy Powder Coated for corrosion prevention |
| Usage | Cargos Storage |
| Package | Plastic stretch film, corrugated paper, Cartons, wooden bars,
crates, metal strips, etc. |
| Certification | RMI/AS4084-2012 /CE/ ISO9001 |
| Delivery time | 7~25 days according to the order quantity |
| Assemble & installation | Detailed assembly instructions are available |
Feature and Advantages of High-Quality Boltless/Rivet Rack Shelving
►Various heights, widths, and depths are available.
►Rapid and Easy Boltless Assembly.
►Affordable and modular manual storage system for small goods.
►Quick and easy to extend and adjust.
►High storage density with minimum lost space.
More Product Details
Product Component
Potential Applications
Ironstone offers a complete line of well-built, long-lasting rivet
shelf components in a variety of sizes to fit any purpose,
including:
♦Storage of small parts
♦Storage of auto parts
♦Hand picking
♦Archive storage for records
♦Storage in the basement
♦Storage for retail purposes
♦Tire storage and clothing storage are examples of specialty usage

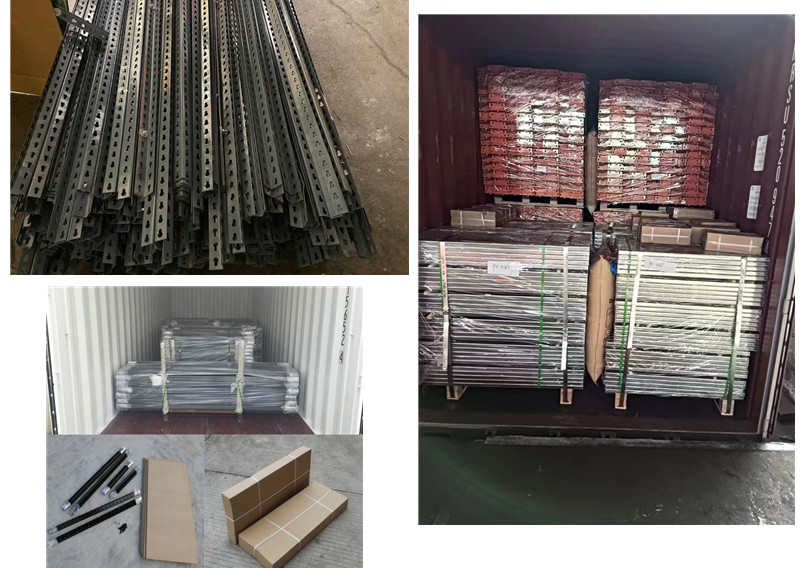

Our Products are Packaged
FAQ
Q1:Does all racks produced by your company?
A1: Yes, we're a direct manufacturer with over 20 years of
experience, main products of us include Pallet Racking, Shelving,
Radio shuttles, Cantilever, Mezzanines, etc. All products are 100%
produced by ourselves.
Q2: Where is your company located?
A2: Our factory is located in Jiangning District, Nanjing, Jiangsu,
China, close to Nanjing Port, convenient for delivery 90,000 sqm
production plant, which enables a strong production capacity and
stable quality.
Q3: What certification do your products pass?
A3: We're ISO9001 certificated company. Rack systems are strictly
designed and produced based on CE and AS4084:2012 standards for
storage racks, and comply with FEM and RMI standards.
Q4 How long of your warranty period?
A4: We afford a 10-year warranty and lifetime insurance services of
all racking products. Any quality issues caused by the quality of
products, we'll provide free parts for replacement.
Q5: Are you able to provide installation service?
A5: We have a mature installation team with rich project
experience. For some complicated cases, our engineer could come to
the project site and help clients with installation work. Normally,
we can offer solutions for your problem through email, mob, and
video calls within 24 hours.
Q6:Your shelf production process?
A6:1. Rack production process
Raw material-punching-cold rolling forming-length, flat
head-welding-calibration-surface spraying-packaging-finished
product
2. Surface treatment process
(1) Surface treatment process
Black billet (remove surface dirt)→pickling→water washing→surface
adjustment→water washing→phosphating→high pressure water washing
(2) Surface spraying
Spraying process: pickling→phosphating→drying→spraying→constant
temperature curing
(3) Selection of powder: the surface coating adopts the epoxy resin
powder electrostatic spraying process produced by the ISO9000
quality certification enterprise.
(4) Coating thickness: the coating thickness is 60-80 microns, and
the coating film performance meets the industry standard.
(5) Coating surface: smooth, smooth, and consistent in color, the
adhesion of electrostatic powder spraying meets the requirements of
level 0 in GB/T6739-1996 standard.
(6) Coating hardness: hardness (abrasion resistance) is more than
100 times that of ordinary nitro paint, and meets the 2H
requirement of GB6739-1996 standard.
Q7:Do you provide the samples?
A7:We can provide the product samples for you to test. Samples can
be transported by sea, land, and air.
Q8:Can OEM/ODM?
A8:We can provide OEM ODM service, we know that brand owners care
about the quality of products, so our products from the choice of
materials, and product style design will be strictly in accordance
with your product design drawing design.
At the same time, we have a professional research and development
team. If you need a product with special functions and
requirements, you can also communicate your ideas with us.
